WI-TEK Wireless AP Controller WI-AC105P


  • Wireless AP Controller with  4 Gigabit PoE Ports
  • Maximum AP managed number up to 32PCS
  • Support end users access 200
  • Support 1-4 WAN ports for load balance
  • Support 4* 802.3af/at PoE Output Ports
  • WLAN Radio Spectrum Analysis to ensure work on best channel
  • Unified manage all indoor and outdoor Aps
  • Intra-AC, Inter-AP L2 /L3 roaming time less than 40ms
  • Built-in captive portal server and customerized welcome page
  • Support Cloud Managed

Rs.  13,700

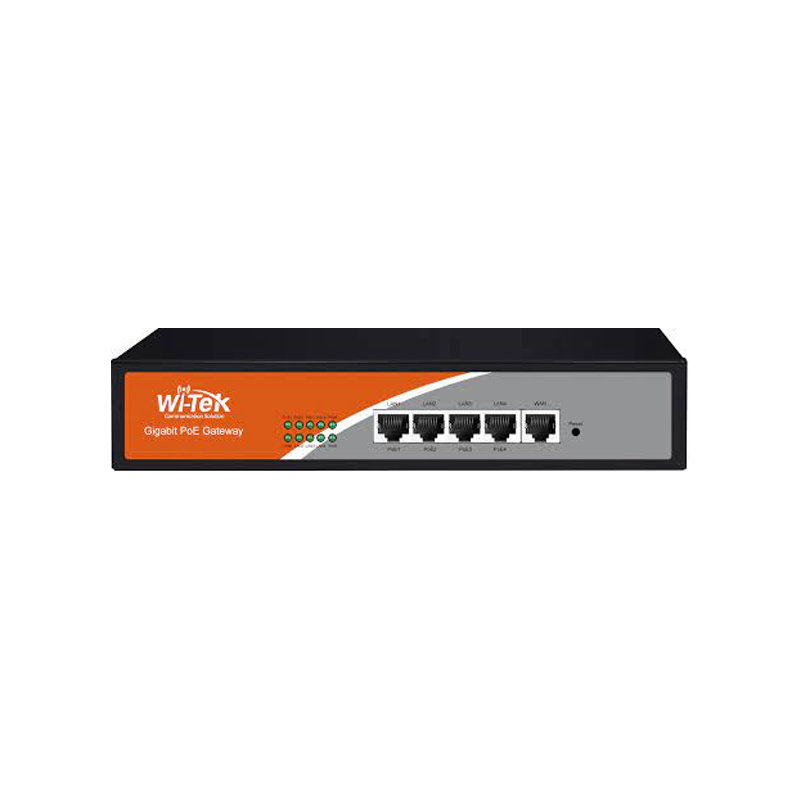

WI-TEK Wireless AP Controller WI-AC105P

Wi-Tek WI-AC105P — this hardware controller, is designed for centralized configuration and wireless network management based on Wi-Tek access points. Supported number of controlled access points — to 32 pcs. The controller has 5 ports 1000Base-T, 4 of which — with PoE support. WI-AC105P controller control and configuration is possible through a web interface or through Cloud Wi-Tek.

The main functions of the WI-AC105P — hardware controller are the operational configuration, management, and centralized monitoring of the operation of Wi-Tek wireless access points, as well as providing seamless roaming between them. Unlike the Cloud controller,

The Wi-Tek WI-AP105P hardware controller supports advanced features:

  • Standards Support seamless roaming IEEE802.11k / r / v, which provides even faster and more automatic reconnection to Wi-Fi networks of devices moving between access points;
  • Captive Portal, individually customized for the customer;
  • SMS authentication— for providing access in public places ( restaurants, hotels, parks, etc. );
  • RADIUS — for centralized management of authentication, authorization, and accounting, in corporate-class networks and SMB.
  • Band steering — automatic "punishment" of dual-band client devices of frequency 5 GHz;
  • Radio ether analyzer, allowing radio planning of the network during the initial setting or evaluating the current radio installation.
Processor   Dual-core MIPS1074K
Memory RAM 256Mb / Flash 16Mb
Interfaces  5x10 / 100 / 1000BASE-T ( 4 with support for PoE )
Power   AC 100-240V
Power consumption 65W max.
Maximum number of access points  32
Maximum number of customers 200
Function Support User insulation, automatic frequency channel selection, access limit, VLAN binding to SSID, view of client statistics, spectrum analyzer, band steering, load balancing
Authentication Methods PPPoE, Radius, built-in services SMS authentication, LDAP, Facebook, One-key, Captive portal
Roaming 802.11k / r / v
Work as a router  Yes
Dimensions 230mm * 150mm * 45mm
Temperature and humidity Operating temperature: -20 ℃ ~ 40 ℃
Storage Temperature: -40 ℃ ~ 70 ℃
Humidity during operation: 5% ~ 95% RH without condensate
Storage Humidity: 5% ~ 95% RH without condensate
Management  Web cloud
Warranty 3 Years
