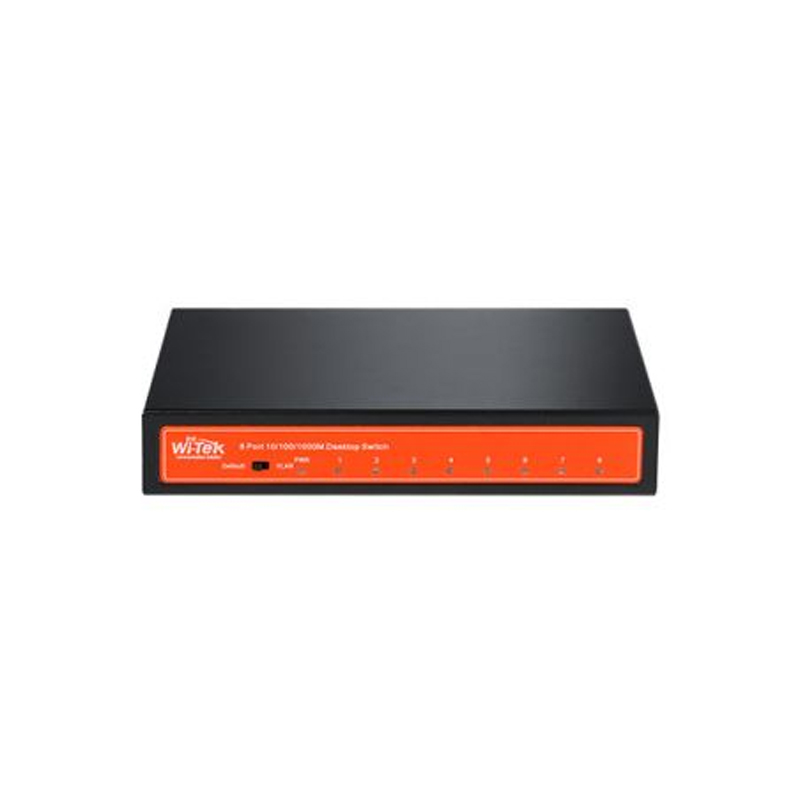

WI-TEK Unmanaged Gigabit Switch WI-SG108

The WI-SG108 switch is equipped with an additional Default / VLAN operating mode switch
Default mode — normal operation.
Mode Vlan — port insulation mode; allows you to isolate the traffic of connected devices at a physical level, which limits their communication at the 2nd and 3rd levels, and guarantees the safety of content transfer.
The switch is made in a compact metal case.

Standards	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p
Interface	8 100/1000Mbps RJ45 Ports
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
	100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
	1000BASE-X: MMF, SMF 1000Base-L X:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)
DIP Switch	Default/VLAN
Fan Quantity	Fanless
Exchange Capacity	16G
Packet Forwarding Rate	11.9Mpps
Mac Address Table	4K
Power Adapter	DC 5-15V
Packet Buffer Memory	1.5Mb
Jumbo Frame	10240 Bytes
Port VLAN	Yes
OTHERS
Certification	CE, FCC, RoHS
Package Dimension	210×170×43 mm
Switch Dimension	140×78×25 mm
Gross Weight	0.49kg
Net Weight	0.28kg
Package Contents	1 × Gigabit Switch
	1 × Power Adapter
	1 × Quick Installation Guide
Working Temperature	-10℃～55℃
Storage Temperature	-40℃～70℃
Working Humidity	10%～90% RH
Working Humidity	non-condensing
Storage Humidity	5%～90% RH non-condensing
Storage Humidity	5%～90% RH non-condensing
Warranty	3 Years
