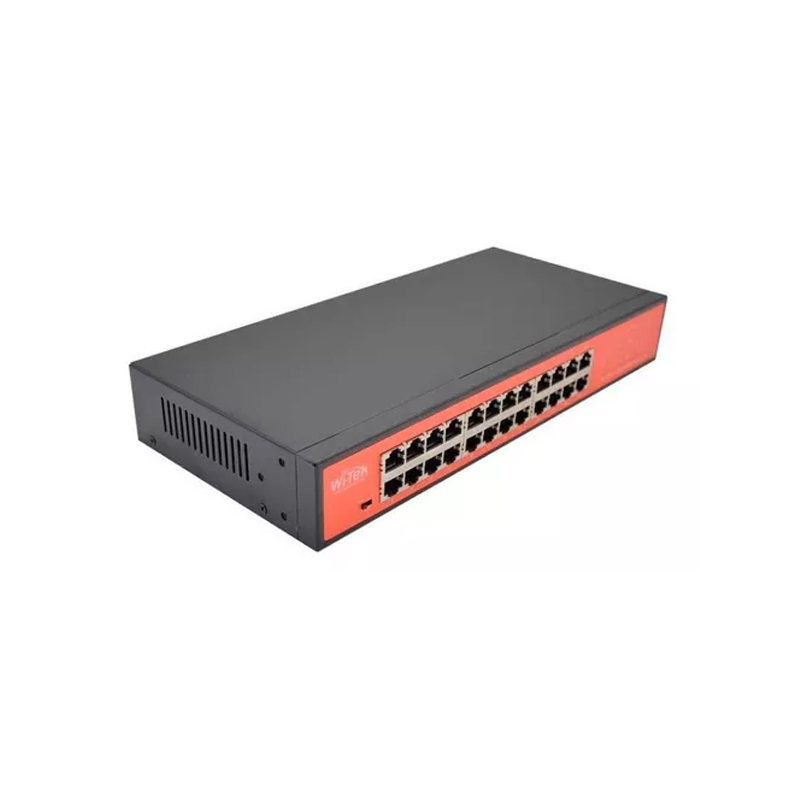

Wi-Tek 24 port smart switch WI-SG124D

Features

● 24 100/1000Mbps RJ45 Ethernet ports
● Plug and play, zero configuration
● Supports desktop or wall mount replacement
● Smart DIP Switch: Port VLAN mode, video priority mode
● Energy efficient design compliant with IEEE802.3az
● Silent operation ideal for noise sensitive environment

HARDWARE FEATURES	WI-SG124D
Standards	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p
Interface	24 100/1000Mbps RJ45 Ports
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
	100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
	1000BASE-X: MMF, SMF 1000Base-L X:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)
DIP Switch	Default/VLAN/CCTV
Fan Quantity	Fanless
Exchange Capacity	48G
Packet Forwarding Rate	35.7Mpps
Mac Address Table	8K
Power Adapter	AC IN: 110-240V
Packet Buffer Memory	12Mb
Jumbo Frame	10240 Bytes
Port VLAN	Yes
OTHERS
Certification	CE, FCC, RoHS
Package Dimension	380×215×95 mm
Switch Dimension	305×140×45 mm
Gross Weight	1.67kg
Net Weight	1.17kg
Package Contents	1 × Gigabit Switch
	1 × Power Cord
	1 × Quick Installation Guide
Working Temperature	-10℃～55℃
Storage Temperature	-40℃～70℃
Working Humidity	10%～90% RH
Working Humidity	non-condensing
Storage Humidity	5%～90% RH non-condensing
Warranty	3 Years
