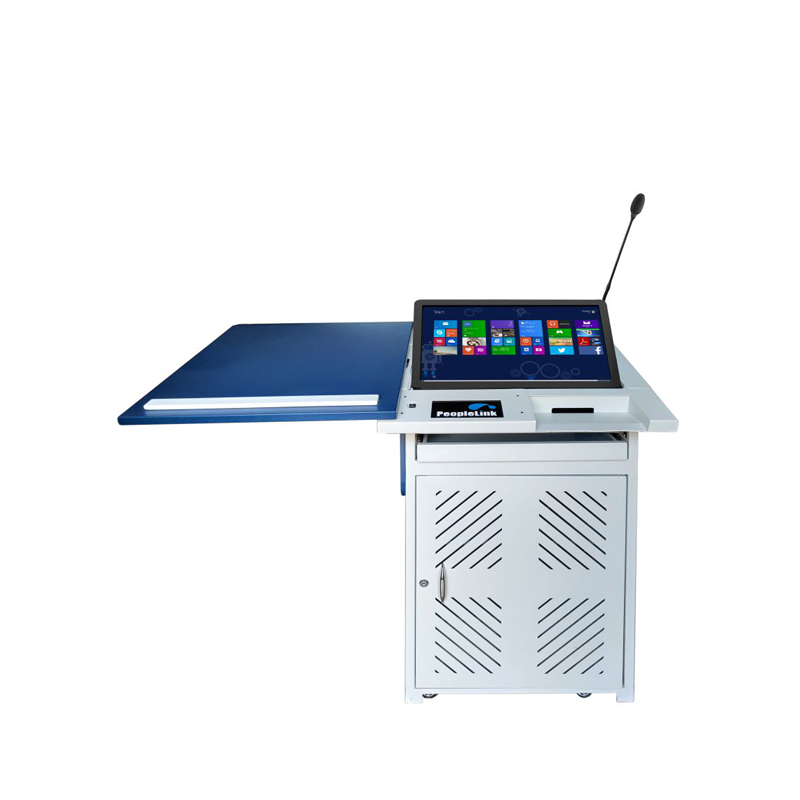

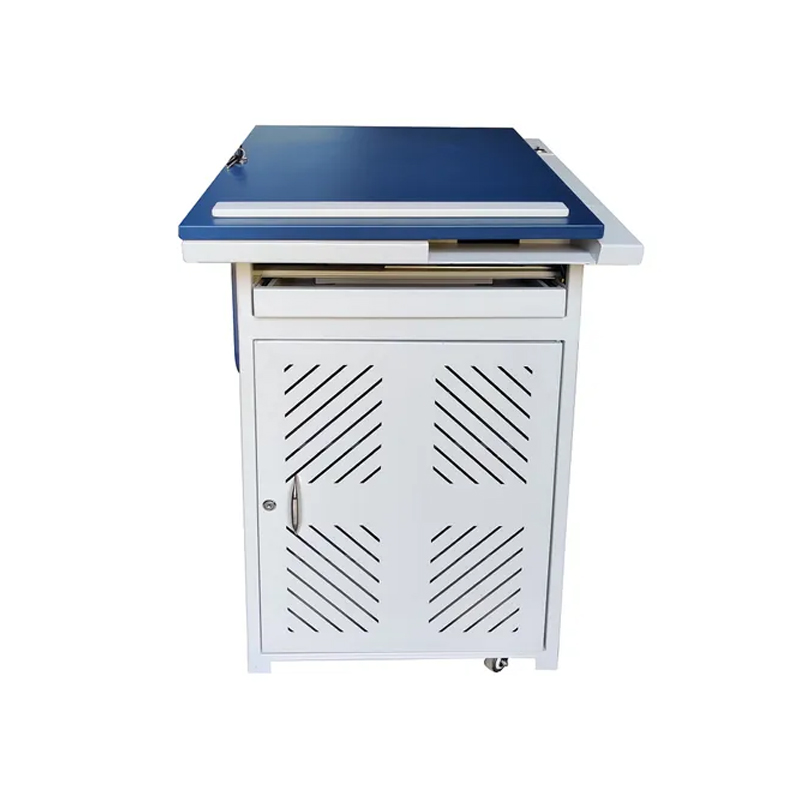

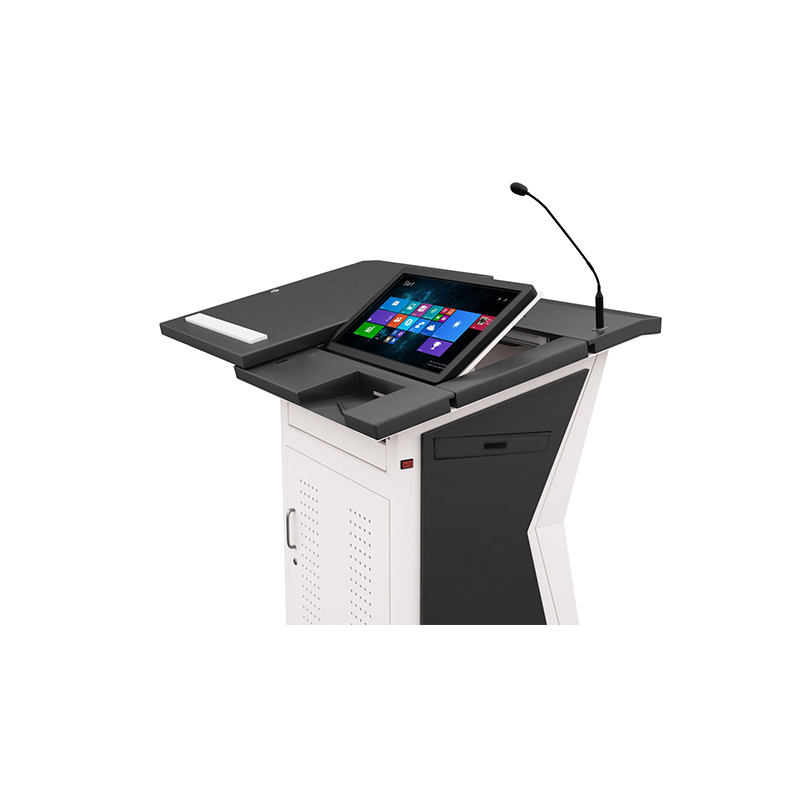

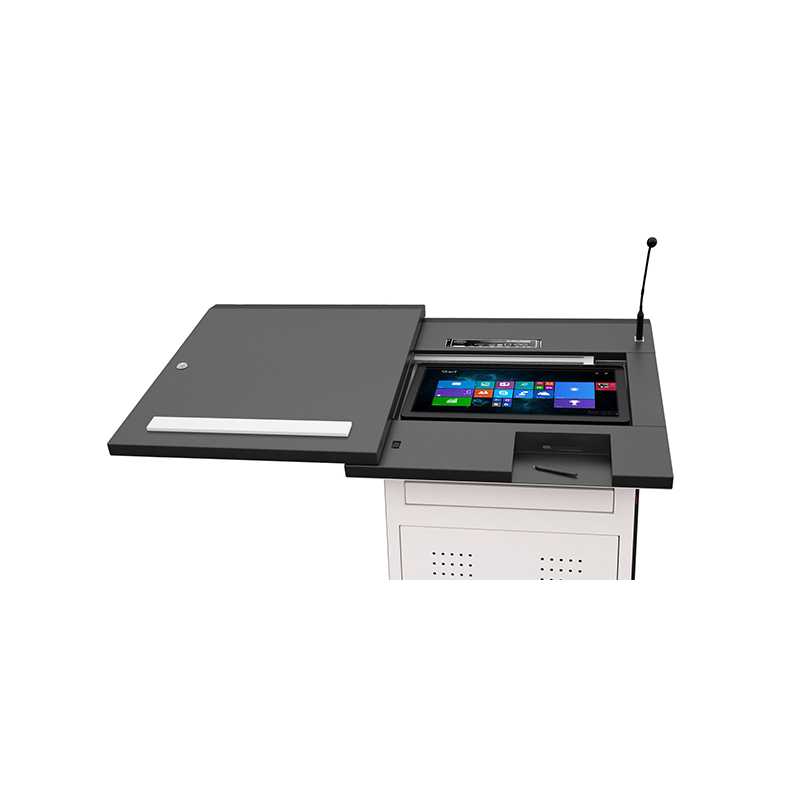

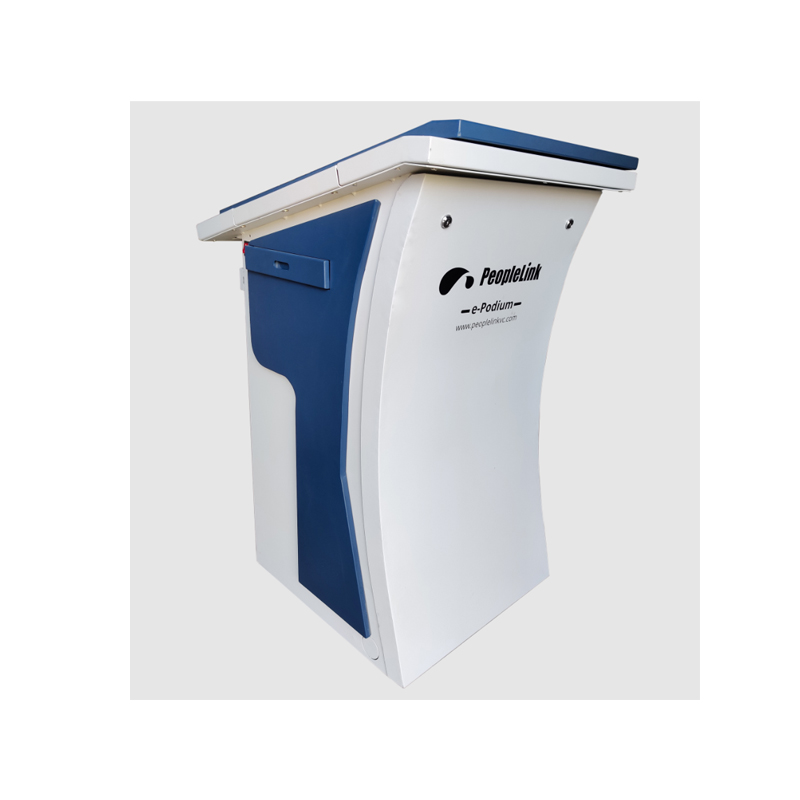

Peoplelink Epodium Ultra 200

• Body material
• Body : Metallic
• Top : Metallic
• Top Sliding Mechanism: Yes
• Provision for Monitor: Yes (up to 22 inches)
• Electronic Monitor Lift: Yes
• Document Camera Tray : Yes (Sliding Type)
• RFID: Optional

Table Monitor Features

• Screen Size : 21.5” wide LED
• Resolution : 1920 x 1080
• PC Connection : USB Port
• Luminosity : 250 cd/m2
• Input : HDMI
• Number of Colours : 16.7M
• Response time : 5ms Contrase ratio : 1000/1
• Operating System : Windows, Linux, Mac.

Electrical

• Input Voltage : DC 12V
• Power : 100 – 250V AC : 100 – 250V AC.

Digital Signal Processor

• Frequency Range : 30Hz -15000 Hz
• Automatic Echo Cancellation : Yes
• Automatic Gain Control : Yes
• Dynamic Noise Reduction : Yes
• Full Duplex : Yes
• Line Input : 1x Line Input
• Line Output : 1 x Line Output
• USB Audio Port : 1 x USB Port

Package Includes

• Microphone Options: 1 lapel + 1 Handheld
• Frequencies Response: 50 Hz-18000 Hz
• Antennas: 2 x 3dBi
• Output: Balanced Out x2, Mixed Out x 1
• Volume Control: Yes
• Amplifier: Yes
• Line Input: 1x Balanced, 2 x Unbalanced.
• Phantom: Yes ( 15 V for Balanced Input)
• Power output @8 ohms: 50 Watts x2
• Minimum impedance: 8 Ohms
• Frequency response : 20Hz-20000Hz
• Speakers ( 1Pair): 50 Watts Speaker ( 1” Titanium Dome Tweeter, 5.25” Polypropylene Woofer, 90-20KHz Frequency response)

Central Controller

• Ethernet : 1x RJ-45
• RS-232 Port : Total 1 dedicated RS-232 Port
• Relay Switch Port : Screen Up/Screen Down ( 2 Nos)

Control Pad

• Type : Buttonpad
• Interface : : RS-232
• Power : 12V
• Size : N/A
• Type : Buttonpad with Buttons: VGA, HDMI, PC, Screen up/ Screen Down, Projector Lift up, Projector Lift Down, MicMute/Unmute, Volume Mute/Unmute, Volume Up/Down.

Laptop Interface

• Type : Buttonpad
• Interface : : RS-232
• Power : 12V
• Size : N/A
• Type : Buttonpad with Buttons: VGA, HDMI, PC, Screen up/ Screen Down, Projector Lift up, Projector Lift Down, MicMute/Unmute, Volume Mute/Unmute, Volume Up/Down.
