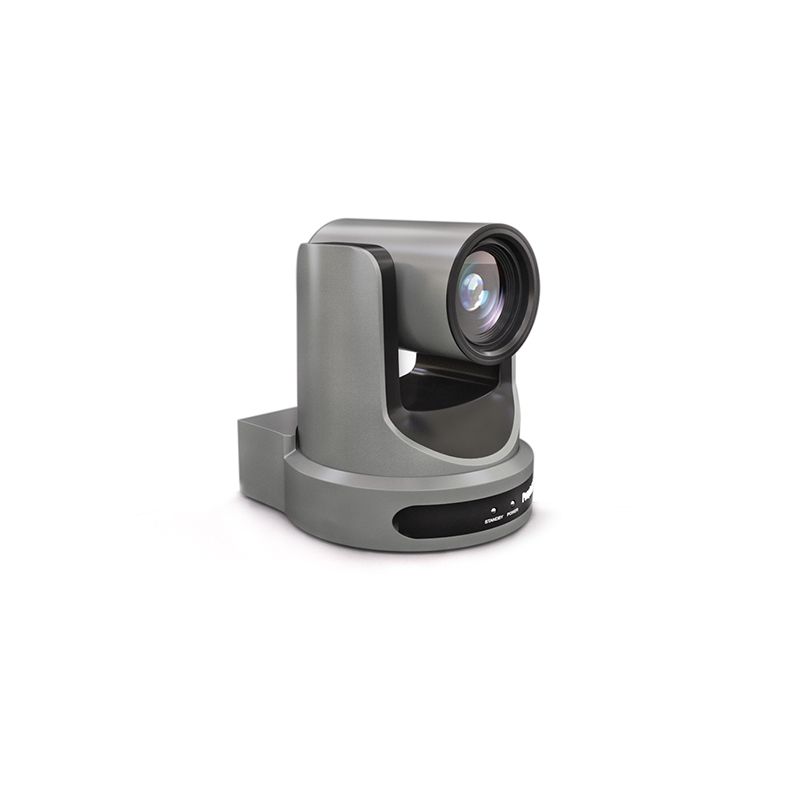

PeopleLink Elite FHD Premium Series 12X iCam


PeopleLink Elite FHD Premium Series are cameras for boardrooms. The Pant/Tilt and Zoom features can be controlled with a remote and allow these cameras to have a coverage of up to 72.5/60.7 / 60.7-degree angle. The 12x/20x/30X optical Zoom and 8 / 16X Digital zoom feature help in capturing every minute detail including facial expressions and gestures. The auto-brightness feature adjusts the brightness based on the available lighting conditions to ensure better video quality.

Rs.  247,000


Key Features

  • 1080P Full HD: Apply Panasonic's 1/2.7 inch, 2.07 million effective pixels high quality HD CMOS sensor, can reach maximum 1920 x 1080 high resolution and achieve quality image.
  • Face Detection: Built-in face detection module, enabling PTZ tracking (Optional).
  • H.265 Support: The first H.265 encoding support conference video camera in the world, enabling full HD 1080p / 60fps video stream by ultra-low bandwith.
  • Local Storage: Support local storage module, directly recording to local USB flash disk without NVR.
  • Low-light: High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm, effectively reduce the noise, even under low illumination conditions, picture can still keep clean and clear.
  • Microphone & AAC Audio Encoding: An external microphone (supported by Elite Elite Premium Series only), and support audio line in input. Support AAC audio encoding, better sound quality and smaller bandwidth.
  • Remote Control: Using RS232/485 interface, all the parameters of the camera can be remote controlled by the high-speed communications.
  • Ultra-high Frame Rate: The output frame rate up to 60fps in 1080P, up to 120fps output in 720P (supported by network only), 640x480P can be as high as 240fps (supported by network only, optional).

Video System: HD: 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/120 (supported by network only), 720p/60, 720p/50, 720p/30, 720p/25, 640x480p/240 (supported by network only, optional) SD: 480i, 576i Sensor: 1/2.7'', CMOS, Effective Pixel: 2.07M Scanning Mode: Progressive Minimal Illumination: 0.5 Lux @ (F1.8, AGC ON) Shutter: 1/30s ~ 1/10000s White Balance: Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push Backlight Compensation: Support Digital Noise Reduction: 2D&3D Digital Noise Reduction Elite FHD Premium Series 12X Lens: f3.5mm ~ 42.3mm, F1.8 ~ F2.8 Digital Zoom: 16x Digital Zoom FOV: 72.5° ~ 6.9° Vertical Angle of View: 44.8° ~ 3.9° Face Detection: * Optional * Pricing for this module is Extra and it is not a Standard feature USB: USB 2.0 ( For Recording ), USB 3.0 HD Out put: 1xHDMI: Version 1.3 Camera Video S/NL: ≥ 55dB Vertical Angle of View: 44.8° ~ 3.9° Horizontal Rotation Range: ± 170° Vertical Rotation Range: -30° ~ +90° Pan Speed Range: 1.7° ~ 100°/s Tilt Speed Range: 1.7° ~ 69.9°/s H & V Flip: Support Image Freeze: Support Local Storage: Support Number of Preset: 255 Preset Accuracy: 0.1° IPC Features Video Compression: H.265 / H.264 / MJEPG Video Stream: Main Stream, Sub Stream Main Stream Resolution: 1920x1080, 1280x720, 1024x576 Sub Stream Resolution: 720x576, 720x480, 320x240 Video Bit Rate: 128Kbps ~ 8192Kbps Bit Rate Type: Variable Rate, Fixed Rate Frame Rate: 50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps, 720p120: 120fps, 640x480p240: 240fps Audio Compression: AAC Audio Bit Rate: 96Kbps, 128Kbps, 256Kbps Support protocols: TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc. Input/Output Interface HD Output: 1xHDMI: Verision 1.3 SD Output: 1xCVBS: 3.5mm mini jack, 1Vp-p, 75Ω Network Interface: 1xRJ45: 10M/100M Ethernet Interface Audio Interface 1-ch: 3.5mm Audio Interface, Line In USB: 1xUSB3.0: Type B female jack, 1xUSB2.0: Type A female jack Communication Interface: a) : 1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P Communication Interface: b) : 1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only Communication Interface: c) 1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P Power Jack JEITA type (DC IN 12V) Generic Specification Input Voltage: DC 12V Current Consumption: 1.0A (Max) Operating Temperature: -10°C ~ 40°C (14°F ~ 104°F) Storage Temperature: -40°C ~ 60°C (-40°F ~ 140°F) Power Consumption: 12W (Max) Size: 169mm x 142mm x 164mm Net Weight: 1.35Kg (3.0lb)
