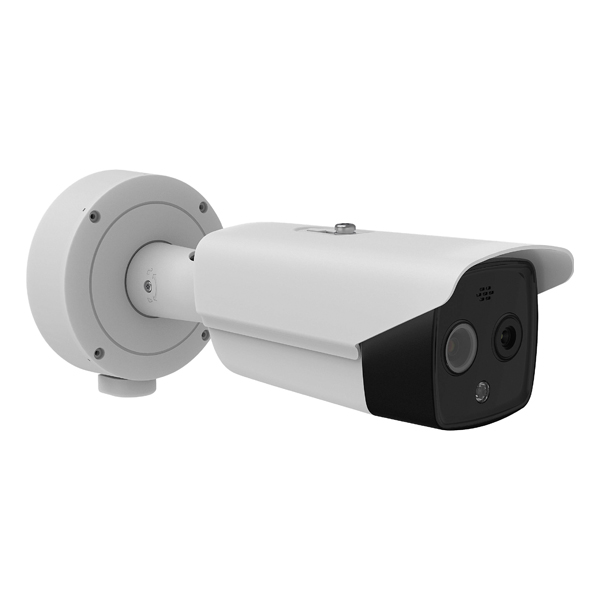

Hikvision Thermographic Bullet Camera DS-2TD2617B-6/PA


Temperature Screening Thermographic Bullet Camera

  • 160 × 120 Resolution in Thermal Channel, High Sensitivity Sensor
  • Accuracy at 4.92 ft to 9.84 ft (1.5 m to 3 m):
    ±0.5° F (±0.3° C) with Blackbody
    ±0.9° F (±0.5° C) without Blackbody
  • Reliable Temperature Exception Alarm Function
  • 3D DNR, Image Detail Enhancement
  • Strobe Light and Voice Alarm* (Price is Including installation)

Rs. 322,390.00

Hikvision DS-2TD2617B-6/PA Thermographic Bullet Cameras are equipped with highly sensitive thermal and optical sensors and a graphical processing unit to run the video content analysis (VCA) algorithms developed by Hikvision’s deep learning technology. The sensor’s 160 x 120 resolution is upscaled to 320 x 240 and features adaptive AGC (Automatic Gain Control), 3D DNR (Digital Noise Reduction), and Digital Detail Enhancement for outstanding image enhancement. The 4 MP optical sensor provides outstanding color video in very dim environments down to 0.0089 lux, and built-in IR illumination allows black and white optical surveillance in zero-light conditions up to 131 ft (40 m).
This camera series is able to measure an object’s temperature at high accuracy in real-time. It is suitable for use in areas that require greater security measures such as airports.

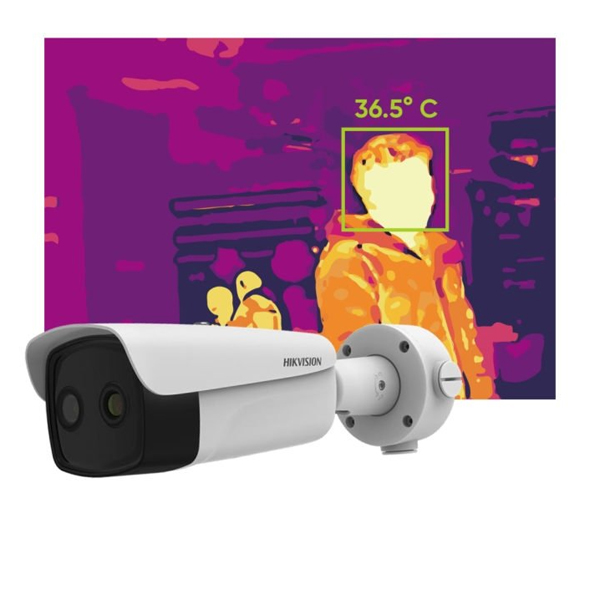

With advanced detectors and algorithms, Hikvision’s Temperature Screening Thermographic Cameras are designed to detect elevated skin-surface temperatures, and can thus be used for rapid and preliminary temperature screening in office buildings, factories, stations, airports, and other public places, with accuracy up to ±0.3°C.

  • One second to detect a skin-surface temperature of a person
  • Non-contact measurement to avoid physical contact
  • Immediately alarming to notify operators
  • AI detection to reduce false alarms from other heat sources

Thermal Module

  • Image SensorVOx Uncooled Focal Plane Arrays
  • Resolution160 × 120
  • Pixel Interval17 μm
  • Response Waveband8 μm to 14 μm
  • NETDLess than 40 mK (@ 25 °C,F#=1.1)
  • Focal Length6.2 mm
  • 74 mrad
  • 1
  • Field Of View25° × 18.7° (H × V)
  • Focusing Distance0.6 m

Optical Module

  • Image Sensor1/2.7″ Progressive Scan CMOS
  • Resolution2688 × 1520, 4 MP
  • IlluminationColor: 0.0089 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON)
  • Field Of View39.42° × 22.14° (H × V)
  • Focal Length8 mm
  • Shutter Speed1s to 1/100,000s
  • White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp
  • Day & Night ModeIR cut filter with auto switch
  • WDR120 dB

Image Effect

  • Bi-Spectrum Image FusionDisplay the details of optical channel on thermal channel
  • Picture In PictureDisplay partial image of thermal channel on the full screen of optical channel

Illuminator

  • IR DistanceUp to 40 m
  • IR Intensity And AngleAutomatically adjusted

Smart Function

  • Temperature Range30 °C to 45 °C (86 °F to 113 °F)
  • Temperature Accuracy± 0.5 °C

Video And Audio

  • Main Stream
  • Thermal:
  • 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240);Optical:
  • 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720);Optical:
  • 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub Stream
  • Thermal: 25 fps (704 × 576, 352 × 288, 320 × 240);Optical:
  • 50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144);Optical:
  • 60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120)
  • Video CompressionH.264 (Baseline/Main/High Profile) /MJPEG/H.265
  • Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
  • APIOpen-ended API, supporting ISAPI, HIKVISION SDK, and third-party management platform, open network video interface
  • SecurityUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
  • Simultaneous Live ViewUp to 20 channels

Interface

  • ClientiVMS-4200, Hik-Connect
  • Web BrowserPlug-in required: IE8-IE11, Chrome 41-44, Firefox 30.0-51
  • Alarm Input2-ch inputs (0-5 VDC)
  • Alarm Output2-ch relay outputs, alarm response actions configurable
  • Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
  • Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 – 2.4 V [p-p], output impedance: 1 KΩ ± 10%
  • Audio OutputLinear Level; Impedance: 600 Ω
  • Communication Interface
  • 1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
  • 1, RS-485 interface
  • On-Board StorageBuilt-in MicroSD card slot, supporting MicroSD/SDHC/SDXC card (up to 256 G), supports manual/alarm recording

General

  • Web Client Language
  • 32 languages
  • English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
  • PowerPoE (802.3af, class 3), 42.5 V to 57 V, 0.14 A to 0.22 A;DC 12V, 0.5A
  • Power Consumption
  • PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 6.5 W
  • 12 VDC ± 20%: 0.5 A, max. 6 W
  • Work Temperature/HumidityFrom 10 °C to 35 °C (Indoor and windless environment use only); Humidity: 95% or Less
  • Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • 3 mm × 113.5 mm × 115.2 mm (14.10″ × 4.47″ × 4.53″)
  • 76 kg (3.88 lb)
