802.3af/at PoE standard,8-core power supply technology, reducing the power circuit loss, Data monitor and control for the important ports, EXTEND mode available to extend the network cable transmission distance to 250 meters, Buffer optimization to guarantee the video data transmission multicast and port mirroring.
Network Parameters
- Port Number 16 × 100 Mbps PoE RJ45 ports, and 2 × gigabit combos.
- Port Type RJ45 port, full duplex, MDI/MDI-X adaptive
- Working Mode Standard mode (default), Extend mode
- Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab and IEEE 802.3z
- Forwarding Mode Store-and-forward switching
- MAC Address Table 16 K
- Internal Cache 4 Mbits
- Switching Capacity 7.2 Gbps
- Packet Forwarding Rate 5.3568 Mpps
Operation Management
- Device Maintenance Support remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters.
- Port Configuration Support rate, flow control, and switch configuration
PoE Power Supply
- PoE Standard Ports 1 to 16: IEEE 802.3af, IEEE 802.3at
- PoE Power Pin Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.
- PoE Port Ports 1 to 16
- Max. Port Power 30 W
- PoE Power Budget 230 W
Software Function
- PoE Function IEEE 802.3at/af device provides power supply.
General
- Dimension (W × H × D) 440 mm × 44 mm × 220.8 mm (4.76” × 3.47” × 1.09”)
- Storage Temperature -40°C to 85°C (-40°F to 185°F)
- Power Source 250 W
- Net Weight 2.59 kg (5.71 lb)
- Shell Metal material, fan-free design
- Operating Temperature -10°C to 55°C (14°F to 131°F)
- Operating Humidity 5% to 95% (no condensation)
- Power Supply 100~240 VAC, 50/60Hz, Max. 2.5 A
- Max. Power Consumption 250 W

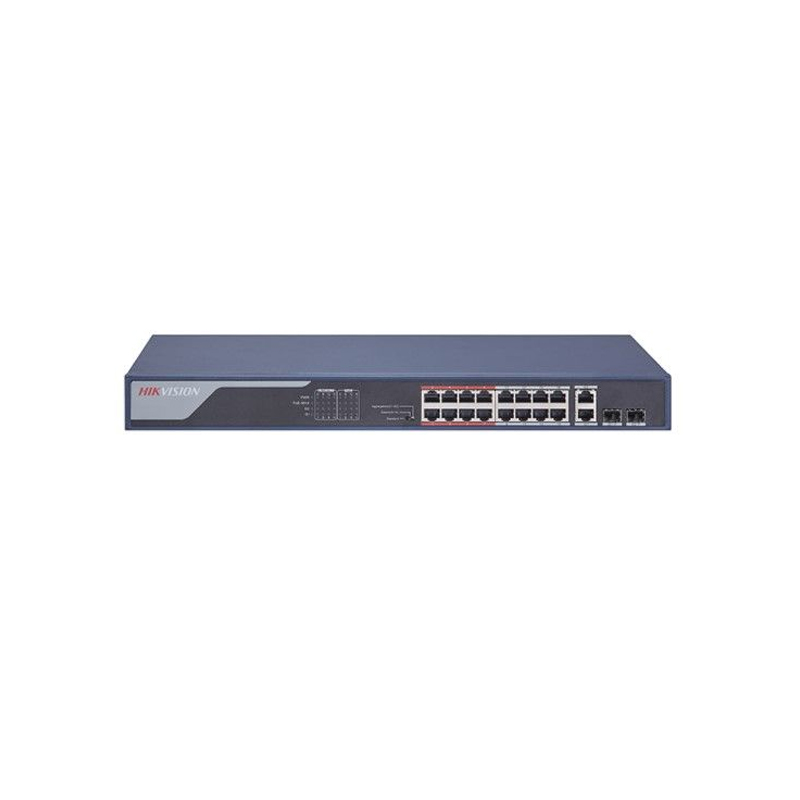

Be the first to review “Hikvision Fast Ethernet Smart POE Switch (DS-3E1318P-EI)”
