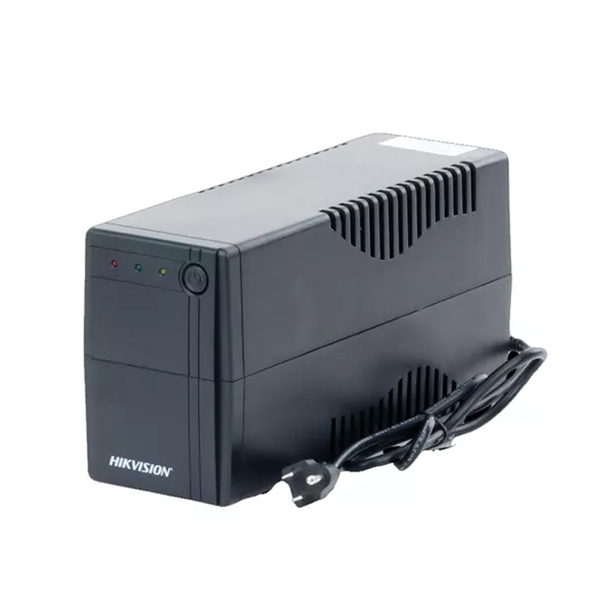

Hikvision DS-UPS1000 Backup UPS




  • Compact size
  • Excellent microprocessor control guarantees high reliability
  • 1 Year Brand Warranty





Rs.  7,480 Rs.  7,875


Hikvision DS-UPS1000 Backup UPS

The Hikvision DS-UPS1000 Backup UPS is a reliable and efficient uninterruptible power supply designed to provide stable backup power. With a 1000VA/600W capacity, this UPS is perfect for homes, offices, and security systems, ensuring seamless operation during power outages and fluctuations.

Key Features:

  • 1000VA/600W Capacity – Provides extended backup for essential devices
  • Automatic Voltage Regulation (AVR) – Maintains stable power output
  • Fast Charging Battery – Quick recovery for uninterrupted performance
  • Multiple Output Ports – Supports computers, routers, and security systems
  • Overload & Short Circuit Protection – Ensures safety and reliability
  • LED Indicators & Audible Alarms – Real-time status monitoring
  • Compact & Durable Design – Space-saving and easy to install

Technical Specifications:

  • Model: Hikvision DS-UPS1000
  • Capacity: 1000VA / 600W
  • Input Voltage: 220V ± 25%
  • Output Voltage: 220V ± 10% (Battery Mode)
  • Battery Type: Sealed Lead-Acid Battery
  • Backup Time: 10-15 minutes (depending on load)
  • Recharge Time: 6-8 hours for 90% capacity
  • Protection: Overload, Short Circuit, Surge Protection
  • Dimensions: Compact for easy placement
Parameters
Protection Method Overload, discharge, and overcharge protection
Operating Temperature and
Humidity
0 °C to 40 °C (32 °F to 104 °F). Humidity 30% to 90% (non-condensing)
Weight Approx. 5.4 kg (11.9 lb)

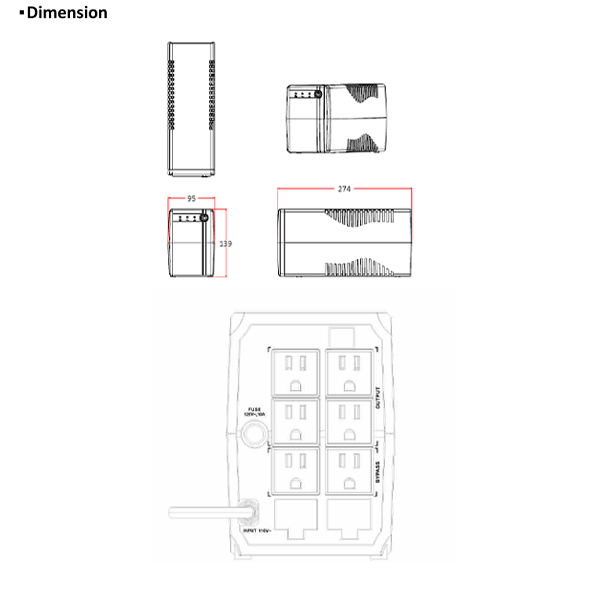

Dimension 274 mm × 95 mm × 139 mm (10.79" × 3.74" × 5.47")
LED Indicator Working Mode (AC Mode): Solid green Charging Mode (DC Mode): Solid red
Overloading Mode: Flashing yellow
Alarm Charging Mode (DC mode): Sounding every 10 seconds Low Battery: Sounding every second
Overloading Mode: Sounding every 0.5 seconds
Fault: Continuously sounding
Storage Conditions -10 °C to 50 °C (14 °F to 122 °F). Humidity 20% to 95% (non-condensing)
Capacity 1000 VA / 600 W
Input Voltage Range (AC mode) 85 VAC to 150 VAC (± 5 VAC)
Input Frequency Range 50/60 Hz
Output Voltage Range (AC
Mode)
102 VAC to 132 VAC
Output Voltage Range (Batt.
Mode)
110 VAC to 125 VAC (No Load)
Frequency Range (Batt. Mode) 50/60 Hz ± 0.5 Hz
Transfer Time DC to AC ≤ 10 ms; AC to DC ≤ 10 ms
Waveform (Batt. Mode) Charging Mode (DC Mode): PWM
POWER
Battery 12 V/9 Ah × 1
Rechargeable Typical recharge time: 10 to 16 hours
