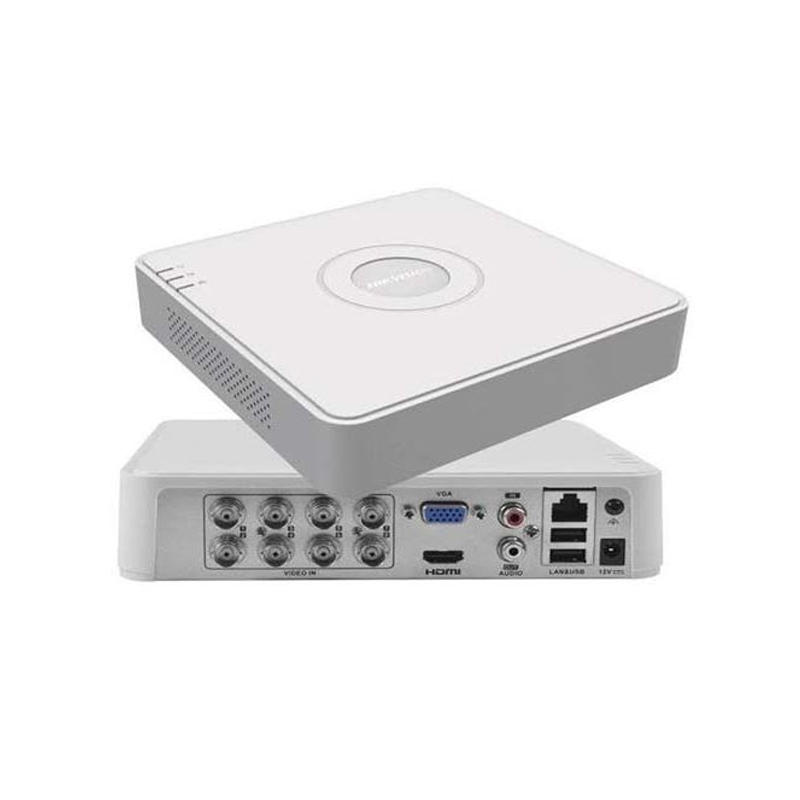

Hikvision 8-ch 1080p Lite Mini 1U H.265 DVR DS-7108HGHI-K1(S)
Smart Function
- Deep learning-based motion detection 2.0
Compression and Recording
- H.265 Pro+ video compression improves encoding efficiency, and reduces data storage costs
- Support 1080p Lite of all channels. When 1080p Lite is on, the image effect is similar with 1080p
Storage and Playback
- 1 SATA interface (up to 4 TB capacity)
- Smart search for efficient playback
Network & Ethernet Access
- Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
Motion Detection 2.0
Human/Vehicle Analysis
- Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify humans and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
- Quick search by object or event type is supported;
Recording
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
- For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
- For 720p stream access: 720p/WD1/4CIF/VGA/CIF
- For SD stream access: WD1/4CIF/VGA/CIF
Frame Rate
Main stream:
- For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps
- For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps
- For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream:
- For 1080p and 720p stream access CIF/QVGA@15 fps
- For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
- Video Bitrate 32 Kbps to 4 Mbps
- Stream Type Video, Video & Audio
- Audio Compression G.711u
- Audio Bitrate 64 Kbps
Video And Audio
IP Video Input
- 2-ch (up to 10-ch)
- Up to 5 MP resolution
- Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
- 8-ch
- BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input 1080p25, 1080p30, 720p25, 720p30
AHD Input 1080p25, 1080p30, 720p25, 720p30
HDCVI Input 1080p25, 1080p30, 720p25, 720p30
CVBS Input Support
HDMI Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output ModeHDMI/VGA simultaneous output
Audio Input
- 1-ch RCA (2.0 Vp-p, 1 KΩ)
- 8-ch via coaxial cable
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio Reuse the first audio input
Synchronous Playback 8-ch
Network
- Total Bandwidth 72 Mbps
- Remote Connection 64
- Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
- Network Interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
- Auxiliary Interface SATA1 SATA interface
- Capacity Up to 4 TB capacity for each disk
- USB Interface Rear panel: 2 × USB 2.0
Alarm In/OutN/A
General
- Power Supply12 VDC, 1.5 A
- Consumption≤ 17 W (without HDD)
- Working Temperature-10 °C to 55 °C (14 °F to +31 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
- Weight≤ 1 kg (without HDD, 2.2 lb.)
