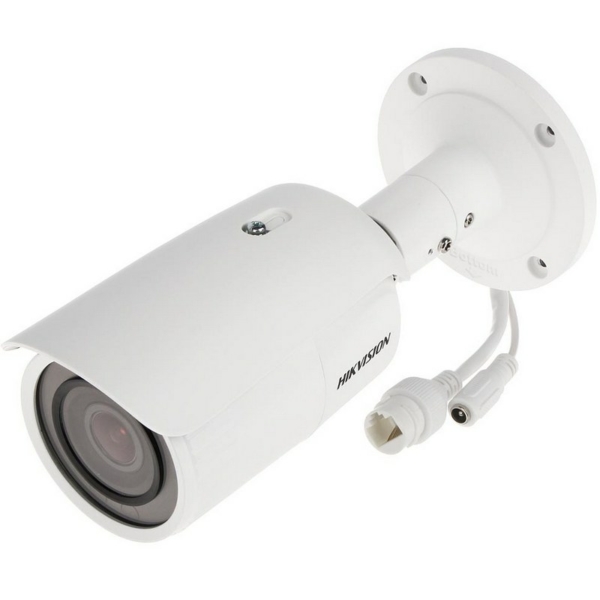

Hikvision 4MP Varifocal Bullet Network Camera (DS-2CD1643G0-I(Z))

High quality imaging with 4 MP resolution
Efficient H.265+ compression technology
Clear imaging even with strong back lighting due to 120 dB WDR
Up to 128 GB SD card slot for storage
2.8 to 12 mm motorized vari-focal lens for easy installation and monitoring
Water and dust resistant (IP67)
EXIR 2.0: advanced infrared technology with long IR range

Rs. 20,350

1/2.8" Progressive CMOS, ICR, 2560x1440:25fps(P)/30fps(N), Motorized Varifocal 2.8~12mm VF lens, EXIR, H.265++/H.265/ H.264+/H.264/MJPEG, IP67, Full Metal, 120db DWDR, 3D DNR, BLC, 30m IR.

Camera

Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON)
Shutter Speed 1/3 s to 1/100, 000 s, support slow shutter
Slow Shutter Yes
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360°
DNR 3D DNR
WDR 120 dB
Day & Night IR cut filter
Auto-Iris No

Lens

Aperture F1.6
Focus-I: Manual,-IZ: Auto ,
FOV Horizontal field of view: 98° to 28°,Vertical field of view: 51° to 16°,Diagonal field of view: 115° to 32°,
Lens Mount Φ14
Focal Length 2.8 to 12 mm


Image Enhancement BLC, 3D DNR
Day/Night Switch Auto, scheduled
Image Settings Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Sub-Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240),
Max. Resolution 2560 × 1440
Main Stream 50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720),60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720),

Network

Protocols Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login
API 5.5.3
Security TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Simultaneous Live View ONVIF (PROFILE S, PROFILE G), ISAPI
User/Host Up to 6 channels
Client Up to 32 users,3 levels: Administrator, Operator and User,
Web Browser iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Detection Support Micro SD/SDHC/SDXC card (128G ), local storage and NAS (NFS,SMB/CIFS), ANR
Standard IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Firmware Version One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark

Interface

Video Output 1 RJ45 10M/100M self-adaptive Ethernet port
SVC 1Vp-p composite output(75 Ω/BNC)

Compression Standard

H.264+ Main stream supports
H.265+ Main stream supports
H.264 Type Baseline Profile/Main Profile/High Profile
Video Compression Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,
H.265 Type Main Profile
Video Bit Rate 32 Kbps to 8 Mbps

IR Range Up to 30 m
Wavelength 850 nm

AccuracyCamera: approx. 1035 g (2.3 lb.),With package: approx. 1550 g (3.4 lb.), Smart Feature-Set

Region Of Interest 1 fixed region for main stream and sub-stream

Wi-Fi (-W)

Wireless Standards Yes

General

Power Supply -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
Dimensions Metal Φ 105 mm × 244.4 mm (Φ 4.1" × 9.6")
Power Consumption12 VDC ± 20%, 5.5 mm coaxial power plug,PoE (802.3af, class 3),
Heater IP67 ,TVS 2000V lightning protection, surge protection and voltage transient protection,
Shipping Weight -IZ: 12 VDC, 0.9 A, max. 11 W; PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, max. 12.9 W,-I: 12 VDC, 0.6 A, max. 7 W; PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 9 W,
