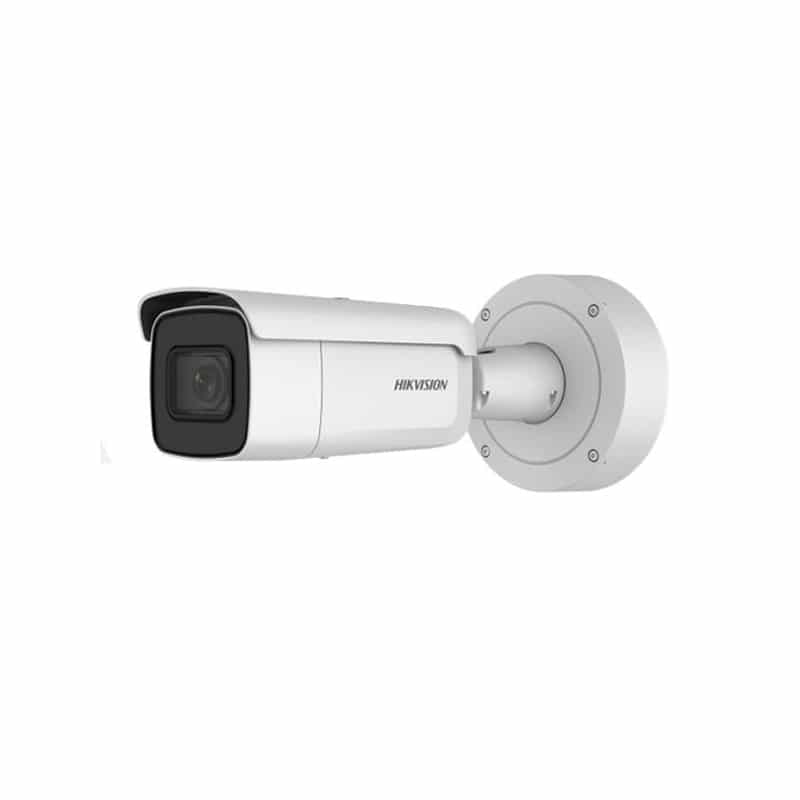

Hikvision 4MP Powered-by-DarkFighter Varifocal Bullet Network Camera(DS-2CD2645FWD-IZS)

Camera

• Image Sensor      1/2.5" Progressive Scan CMOS
• Min. Illumination    Color: 0.008 lux @(F1.2, AGC ON), 0.011 lux @(F1.4, AGC ON), 0 lux with IR
• Shutter Speed     1/3 s to 1/100,000 s
• Slow Shutter   Yes
• Wide Dynamic Range     120dB
• Day & Night     IR Cut Filter
• Angle Adjustment    Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Camera

• Image Sensor      1/2.5" Progressive Scan CMOS
• Min. Illumination    Color: 0.008 lux @(F1.2, AGC ON), 0.011 lux @(F1.4, AGC ON), 0 lux with IR
• Shutter Speed     1/3 s to 1/100,000 s
• Slow Shutter   Yes
• Wide Dynamic Range     120dB
• Day & Night     IR Cut Filter
• Angle Adjustment    Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Illuminator

• IR Range     Up to 50 m
• Wavelength     850nm

Video

• Max. Resolution     2688 × 1520
• Main Stream    50Hz: 25fps (2688 × 1520, 2304 × 1296, 1920 × 1080) 60Hz: 30fps (2688 × 1520, 2304 × 1296, 1920 × 1080)
• Sub Stream   50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
• Third Stream     50Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240)
• Video Compression   Main stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
• Video Bit Rate      32 Kbps to 16 Mbps
• H.264 Type      Main Profile/High Profile
• H.265 Type       Main Profile
• H.264+        Main stream supports
• H.265+        Main stream supports
• Scalable Video Coding (SVC)      Support H.264 and H.265 encoding
• Region Of Interest (ROI)       Support 1 fixed region for main stream and sub stream

Audio

• Environment Noise Filtering    Yes
• Audio Sampling Rate       8kHz/16kHz/32kHz/44.1kHZ/48kHz
• Audio Compression        G.711/G.722.1/G.726/MP2L2/PCM
• Audio Bit Rate      64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)

Interface

• Audio       1 input (line in, 3.5 mm), 1 output(3.5 mm), mono sound
• Alarm       1 input, 1 output (max. 12 VDC, 30 mA), terminal block
• Video Output        1Vp-p composite output (75 Ω) (For adjustment only)
• On-Board Storage       Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
• Hardware Reset       Yes
• Communication Interface       1 RJ45 10M/100M self-adaptive Ethernet port

General

• Linkage Method        Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
• Firmware Version     V5.5.80
• Web Client Language         32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• General Function        One-key reset ，anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening，password protection, watermark, IP address filter
• Startup And Operating Conditions      -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
• Power Supply       12 VDC ± 25%, terminal block for DC input, PoE(802.3at, class 4)
• Power Consumption And Current      12 VDC, 1.2 A, max. 14.4 W, PoE (802.3at, 42.5V to 57V), 0.5 A to 0.3 A, max. 18 W
• Camera Dimension      Φ144.1 × 332.7 mm (Φ5. 7"× 13.1")
• Camera Weight         Camera: approx. 1893 g (4.2 lb.)
