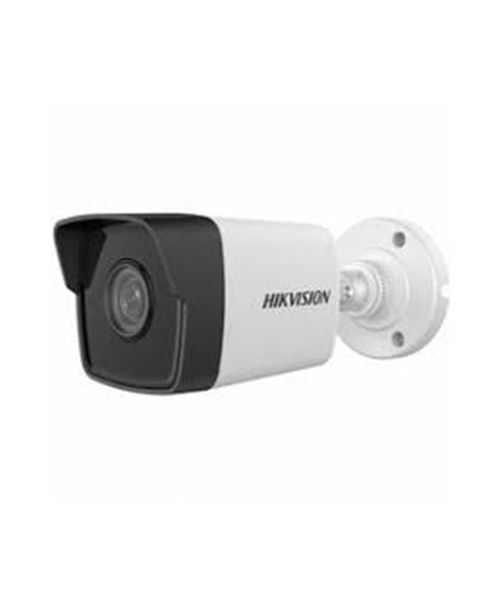

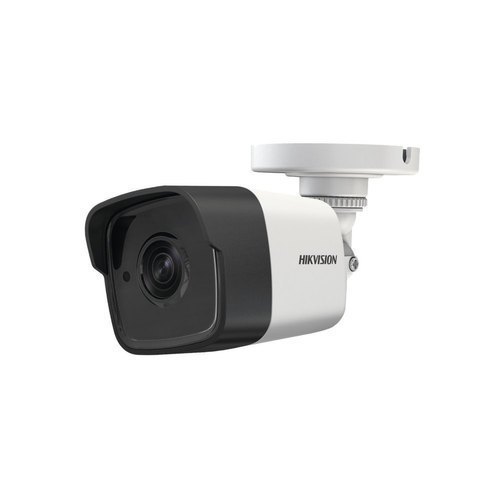

Hikvision 4MP Fixed Bullet Network Camera (DS-2CD1043G0E-I)

Camera

• Image Sensor   1/3" Progressive Scan CMOS
• Min. Illumination   Color: 0.028 Lux @ (F2.0, AGC ON)
• Shutter Speed    1/3 s to 1/100,000 s
• Slow Shutter    Yes
• Day &Night    IR Cut Filter
• Wide Dynamic Range    Digital WDR
• Angle Adjustment      Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°

Lens

• Lens   Fixed lens, 2.8/4 mm
• Aperture    F2.0
• FOV    2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117° 4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88°
• Lens Mount   M12

Illuminator

• IR Range     Up to 30 m
• Wavelength    850nm

Video

• Max. Resolution   2560 × 1440
• Main Stream      50Hz: 20fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 20fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
• Sub Stream         50Hz: 20fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 20fps (640 × 480, 640 × 360, 320 × 240)
• Video Compression Main stream:  H.265+/H.264+/H.265/H.264 Sub-stream:     H.265/H.264/MJPEG
• H.264 Type     Baseline Profile/Main Profile
• H.265 Type      Main Profile
• Video Bit Rate    32 Kbps to 8 Mbps

Smart Feature-Set

• Basic Event   Motion detection, video tampering alarm, exception (illegal login)
• Region Of Interest     1 fixed region for main stream
• Linkage Method    Upload to FTP, notify surveillance center, send email


• Image Enhancement    BLC, HLC, 3D DNR
• Image Setting       Saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
• Day/Night Switch      Day/Night/Auto/Schedule
• SNR     >50dB

Network

• Protocols   TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• API        ONVIF (PROFILE S), ISAPI, SDK
• Security     Password protection, complicated password, IP address filter, Watermark, HTTPS encryption, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, 802.1X authentication (EAP-MD5)
• Simultaneous Live View       Up to 6 channels
• User/Host        Up to 32 users,3 levels: Administrator, Operator and User
• Client       iVMS-4200, Hik-Connect, Hik-Central
• Web Browser       IE8+, Chrome 41.0-44, Firefox30.0-51, Safari8.0-11

Interface

• Communication Interface     1 RJ45 10M/100M self-adaptive Ethernet port

General

• General Function    Anti-flicker, heartbeat, mirror, privacy mask
• Reset          Reset via web browser and client software
• Startup And Operating Conditions   -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
• Storage Conditions        -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
• Power Supply       12 VDC ± 25%, Φ 5.5 mm coaxial power plug, reverse polarity protection; PoE (802.3af, class 3)
• Power Consumption And Current      12 VDC, 0.35 A, max. 4.2 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 4.2 W
• Material       Front cover: metal, back cover: plastic
• Dimensions    Camera: 66.2 mm × 67.8 mm × 177.6 mm (2.6" × 2.7\" × 7\") With package: 216 × 121 × 118 mm (8.5 × 4.8\" × 4.6\")" Camera: approx. 280 g (0.6 lb.) With package: approx. 501 g (1.1 lb.)
