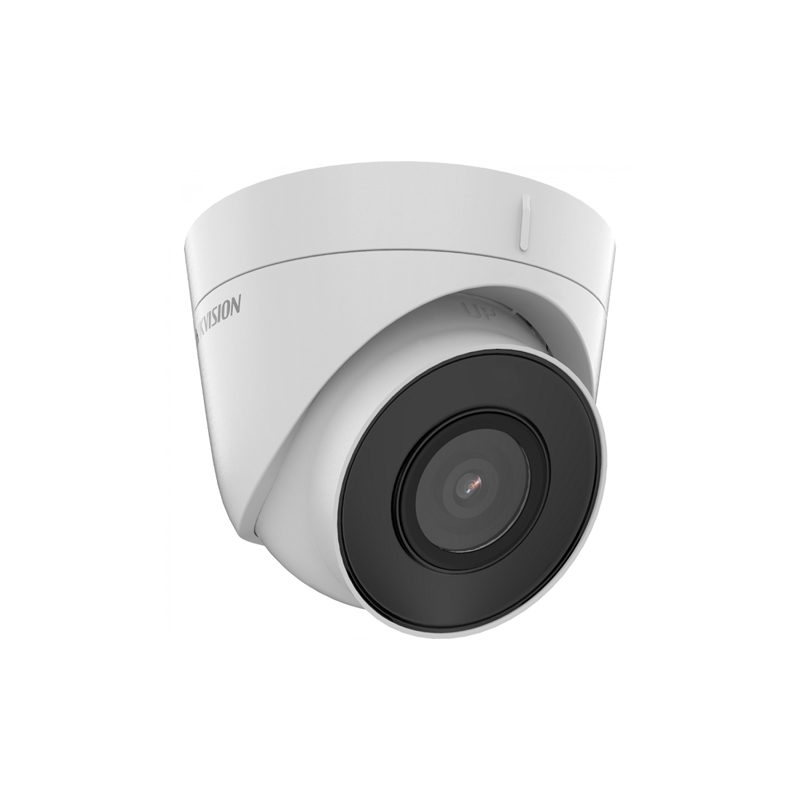

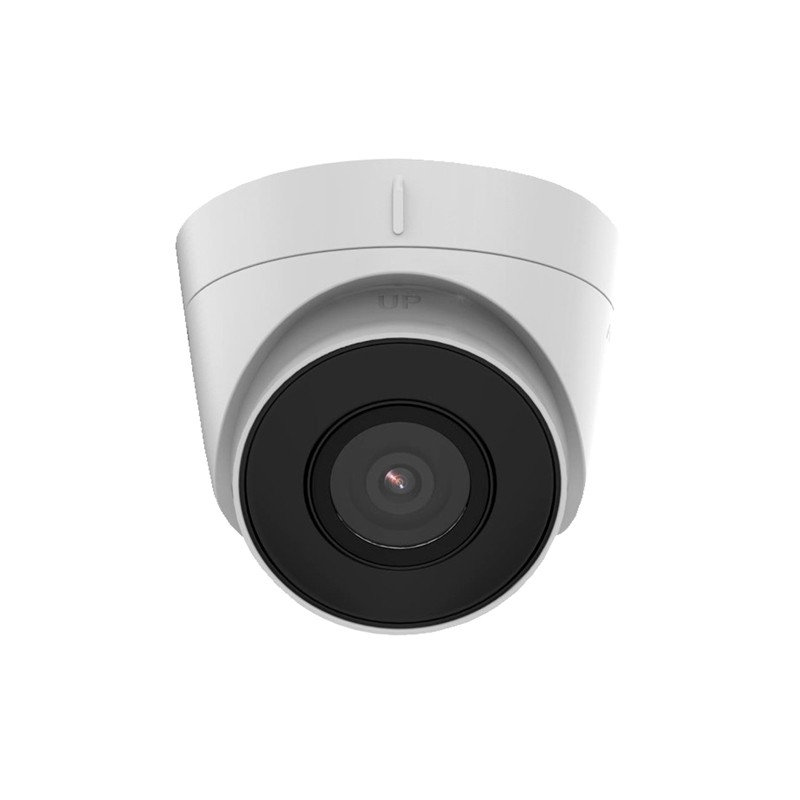

Hikvision 4 MP MD 2.0 Fixed Dome Network Camera DS-2CD1343G2-I
The Hikvision DS-2CD1343G2-I is a powerful surveillance camera that delivers high-quality imaging with its impressive 4 MP resolution, ensuring sharp and detailed footage. It supports advanced features such as human and vehicle detection, enabling intelligent analytics for enhanced security and targeted monitoring. Built to withstand challenging environments, this camera is water and dust resistant with an IP67 rating, ensuring reliable operation even in harsh outdoor conditions. With its 120 dB wide dynamic range (WDR), it can provide clear imaging even in situations with strong back lighting, effectively balancing light and dark areas for optimal visibility. The camera incorporates efficient H.265+ compression technology, which effectively reduces bandwidth and storage requirements without compromising image quality. Equipped with EXIR 2.0, an advanced infrared technology, it offers a long IR range for exceptional night-time surveillance capabilities. Additionally, the camera provides the option of on-board storage of up to 256GB through an SD card slot, allowing for convenient local recording. For added security measures, it can be optionally equipped with a built-in microphone, enabling real-time audio monitoring and enhancing overall surveillance capabilities.
Features
- High quality imaging with 4 MP resolution
- Support Human and Vehicle Detection
- Water and dust resistant (IP67)
- Clear imaging even with strong back lighting due to 120 dB WDR
- Efficient H.265+ compression technology
- EXIR 2.0: advanced infrared technology with long IR range
- Support on-board storage up to 256GB (SD card slot)(Optional)
- Built-in microphone for real-time audio security(Optional)
Camera
- Image Sensor 1/3" Progressive Scan CMOS
- Max. Resolution 2560 × 1440
- Min. Illumination Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
- Shutter Time 1/3 s to 1/100,000 s
- Day & Night IR cut filter
- Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
- Lens Type Fixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV
-
- 2.8 mm, horizontal FOV 99°, vertical FOV 55°, diagonal FOV 116°
- 4 mm, horizontal FOV 76°, vertical FOV 41°, diagonal FOV 90°
-
- Lens Mount M12
- Iris Type Fixed
- Aperture F2.0
DORI
- 2.8 mm, D: 59 m, O: 23 m, R: 11 m, I: 5 m
- 4 mm, D: 79 m, O: 31 m, R: 15 m, I: 7 m
Illuminator
- Supplement Light Type IR
- Supplement Light Range Up to 30 m
- Smart Supplement Light Yes
- IR Wavelength 850 nm
Video
Main Stream
- 50 Hz:
- 20 fps (2560 × 1440)
- 25 fps (1920 × 1080, 1280 × 720)
- 60 Hz:
- 20 fps (2560 × 1440)
- 24 fps (1920 × 1080, 1280 × 720)
- Sub-Stream
- 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression
- Main stream: H.265+/H.265/H.264+/H.264
- Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate 32 Kbps to 8 Mbps
- H.264 Type Baseline Profile/Main Profile/High Profile
- H.265 Type Main Profile
- Bit Rate Control CBR/VBR
- Region Of Interest (ROI) 1 fixed region for main stream
Audio
- Audio Type-U: Mono sound
- Environment Noise Filtering-U: Yes
- Audio Sampling Rate-U: 8 kHz/16 kHz
- Audio Compression-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Audio Bit Rate-U: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Network
- Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- Simultaneous Live View Up to 6 channels
- API Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)), ISAPI, SDK
- Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
- User/Host
- Up to 32 users
- 3 levels: administrator, operator, and user
- Client iVMS-4200, Hik-Connect
- Web Browser
- Plug-in required live view: IE 10, IE 11
- Local service: Chrome 57.0+, Firefox 52.0+
- Wide Dynamic Range (WDR) 120 dB
- SNR ≥ 52 dB
- Day/Night Switch Day, Night, Auto, Schedule
- Image Enhancement BLC, HLC, 3D DNR
- Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
- Privacy Mask 4 programmable polygon privacy masks
Interface
- Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
- Built-In Microphone-U: Yes
- Reset Key-F: Yes
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
- Linkage Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture
General
- Power
- 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
- PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
- Material Metal & Plastic
- Dimension Ø110 mm × 85.3 mm (Ø4.3" × 3.4")
- Package Dimension 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
- Weight -I: Approx. 330 g (0.7 lb.); -IUF: Approx. 340 g (0.7 lb.)
- With Package Weight -I: Approx. 550 g (1.2 lb.); -IUF: Approx. 560 g (1.2 lb.)
- Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
