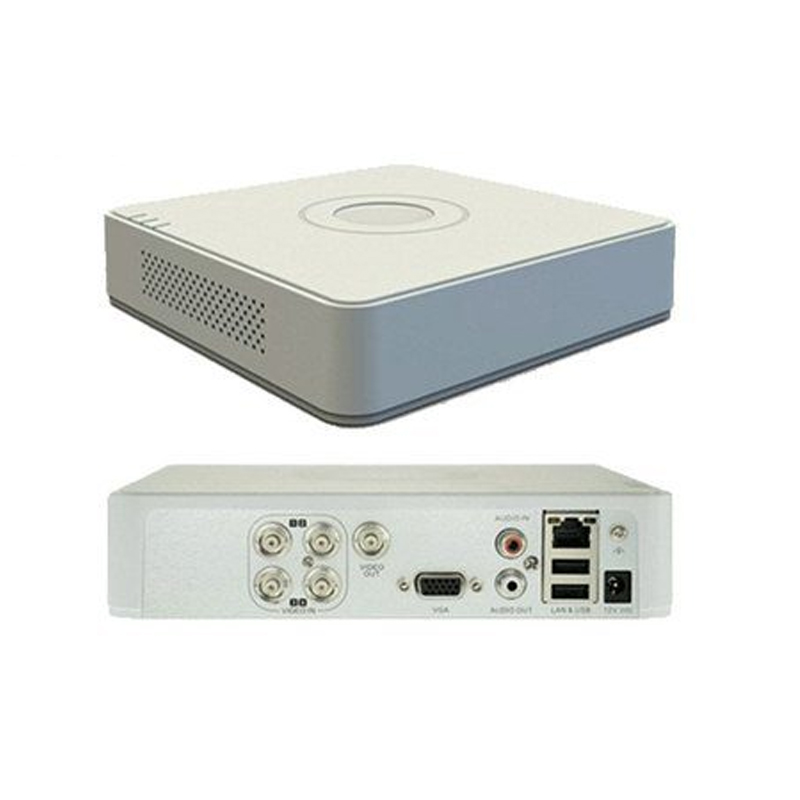

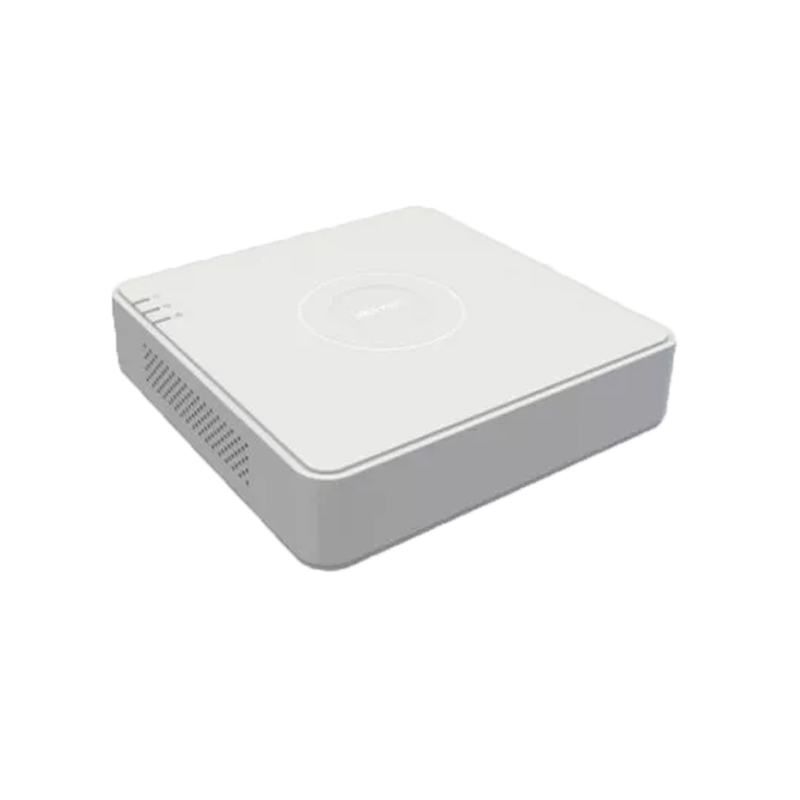

Hikvision 4-ch 1080p Lite Mini 1U H.265 DVR DS-7104HGHI-K1(S)

  • Deep learning based human and vehicle targets classification of Motion Detection 2.0
  • H.265 Pro+/H.265 Pro/H.265 video compression
  • HDTVI/AHD/CVI/CVBS/IP video input
  • Audio via coaxial cable
  • Up to 5-ch IP camera inputs (up to 2 MP)
  • Up to 1080p Lite@15 fps encoding capability
  • Max. 1200 m for 720p HDTVI signal

Rs.  6,175 Rs.  6,499


Hikvision 4-ch 1080p Lite Mini 1U H.265 DVR DS-7104HGHI-K1(S)

Smart Function

  • Deep learning-based motion detection 2.0

Compression and Recording

  • H.265 Pro+ video compression improves encoding efficiency, and reduces data storage costs
  • Support 1080p Lite of all channels. When 1080p Lite is on, the image effect is similar with 1080p

Storage and Playback

  • 1 SATA interface (up to 4 TB capacity)
  • Smart search for efficient playback

Network & Ethernet Access

  • Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management



Motion Detection 2.0

  • Human/Vehicle Analysis
    Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
    Quick search by object or event type is supported;

    Recording

  • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding Resolution

    For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF

    For 720p stream access: 720p/WD1/4CIF/VGA/CIF

    For SD stream access: WD1/4CIF/VGA/CIF

    Frame Rate

  • Main stream:
    For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N)
    For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N)
    For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
    Sub-stream:
    4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)

  • Video Bitrate32 Kbps to 4 Mbps
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711u
  • Audio Bitrate64 Kbps

    Video And Audio
  • IP Video Input
    1-ch (up to 5-ch)
    Up to 1080p resolution
    Support H.265+/H.265/H.264+/H.264 IP cameras
  • Analog Video Input
    4-ch
    BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • HDTVI Input1080p25, 1080p30, 720p25, 720p30
  • AHD Input1080p25, 1080p30, 720p25, 720p30
  • HDCVI Input1080p25, 1080p30, 720p25, 720p30
  • CVBS InputSupport
  • HDMI Output

    1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz



  • VGA Output
    1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • Video Output ModeHDMI/VGA simultaneous output
  • Audio Input
    1-ch RCA (2.0 Vp-p, 1 KΩ)
    4-ch via coaxial cable
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way AudioReuse the first audio input
  • Synchronous Playback4-ch

    Network
  • Total Bandwidth64 Mbps
  • Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
  • Remote Connection32
  • Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface

    Auxiliary Interface
  • SATA1 SATA interface
  • CapacityUp to 4 TB capacity for each disk
  • USB InterfaceRear panel: 2 × USB 2.0
  • Alarm In/OutN/A

    General
  • Power Supply12 VDC, 1.5 A
  • Consumption≤ 16 W (without HDD)
  • Working Temperature-10 °C to 55 °C (14 °F to +31 °F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
  • Weight≤ 0.8 kg (without HDD, 1.8 lb.)
