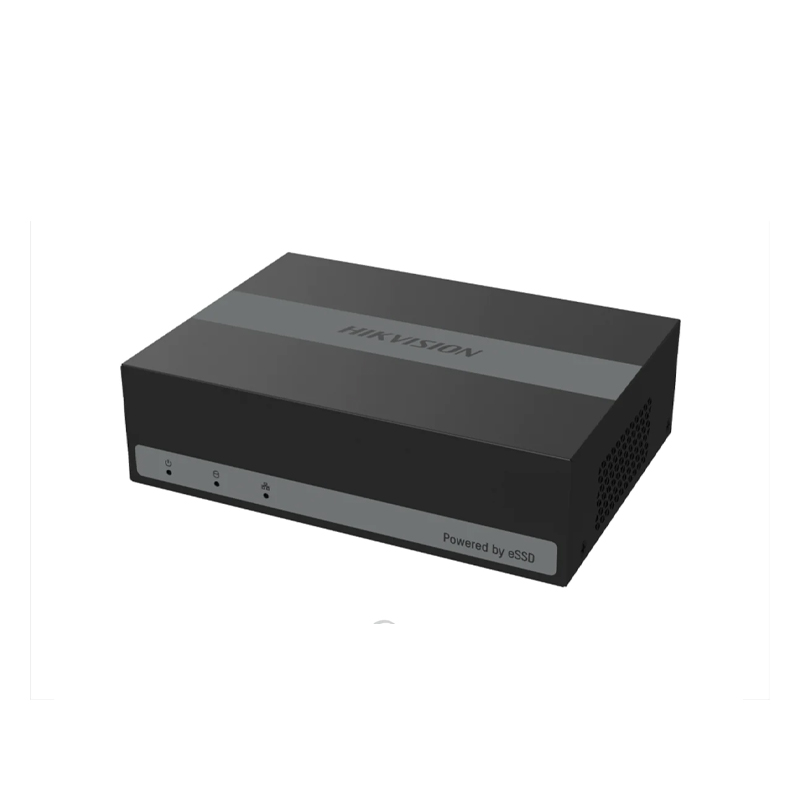

Hikvision 4-ch 1080p Lite 1U H.265 eSSD DVR DS-E04HGHI-B

  • Powered by eSSD technology
  • Deep learning based human and vehicle targets classification of Motion Detection 2.0
  • Scene-adaptive bitrate control video compression
  • Up to 1080p Lite@30 fps encoding capability
  • Low power consumption
  • Audio via coaxial cable
  • 300 GB Available

Rs.  10,555 Rs.  11,108


Hikvision 4-ch 1080p Lite 1U H.265 eSSD DVR DS-E04HGHI-B

Built-In SSD

  • Minimalist eSSD design brings low power consumption
  • Integrated storage design provides the plug-and-play device use

Easy Installation

  • Mini size design saves installation space
  • Anti-vibration design and light weight satisfy more installation conditions

Compression and Recording

  • Scene-adaptive bitrate control technology would precisely allocate videos in eSSD according to the actual scene
  • Full channel recording at up to 2 MP Lite resolution

Smart Function

  • Deep learning-based motion detection 2.0
  • Smart search for efficient playback

Motion Detection 2.0

  • Human/Vehicle Analysis
    Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
    Quick search by object or event type is supported;

Recording

Video CompressionH.265 Pro/H.265

Encoding Resolution1080p Lite/720p/720p Lite/WD1/4CIF/CIF/QVGA

Frame Rate

Main stream:

  • 1080p Lite/720p/720p Lite/WD1/4CIF@25 fps (P)/30 fps (N)

Note: 1080p Lite/720p is 15 fps by default

Sub-stream:

  • 4CIF@15 fps; CIF/QVGA@25 fps (P)/30 fps (N)
  • Video BitrateAccording to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.

Stream Type

Video, Video & Audio

Note: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.

Audio Compression G.711u

Audio Bitrate 64 Kbps

Video And Audio

IP Video Input 1-ch

Up to 1080p resolution

Support H.265+/H.265 IP cameras

Analog Video Input

  • 4-ch
  • BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • HDTVI Input1080p25, 1080p30, 720p25, 720p30
  • AHD Input1080p25, 1080p30, 720p25, 720p30
  • HDCVI Input1080p25, 1080p30, 720p25, 720p30
  • CVBS InputSupport
  • HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • Video Output ModeHDMI/VGA simultaneous output
  • Audio Input4-ch via coaxial cable
  • Audio Output1-ch via HDMI
  • Synchronous Playback4-ch

Network

  • Total Bandwidth 64 Mbps
  • Incoming bandwidth: 4 Mbps
  • Remote Connection32
  • Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS
  • Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Auxiliary Interface

  • Capacity
  • Built-in 330 GB eSSD (300 GB available)

Note:

The device can store about 2 weeks videos for 4-ch analog cameras (default parameters), this estimation is for reference only.

  • USB InterfaceRear panel: 2 × USB 2.0
  • Alarm In/OutN/A

General

  • Power Supply12 VDC, 1 A
  • Consumption≤ 5.4 W (with eSSD)
  • Working Temperature-10 °C to 45 °C (14 °F to +113 °F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)151 × 121 × 46 mm (5.94 × 4.76 × 1.81 inch)
  • Weight≤ 0.5 kg (with eSSD, 1.1 lb.)
