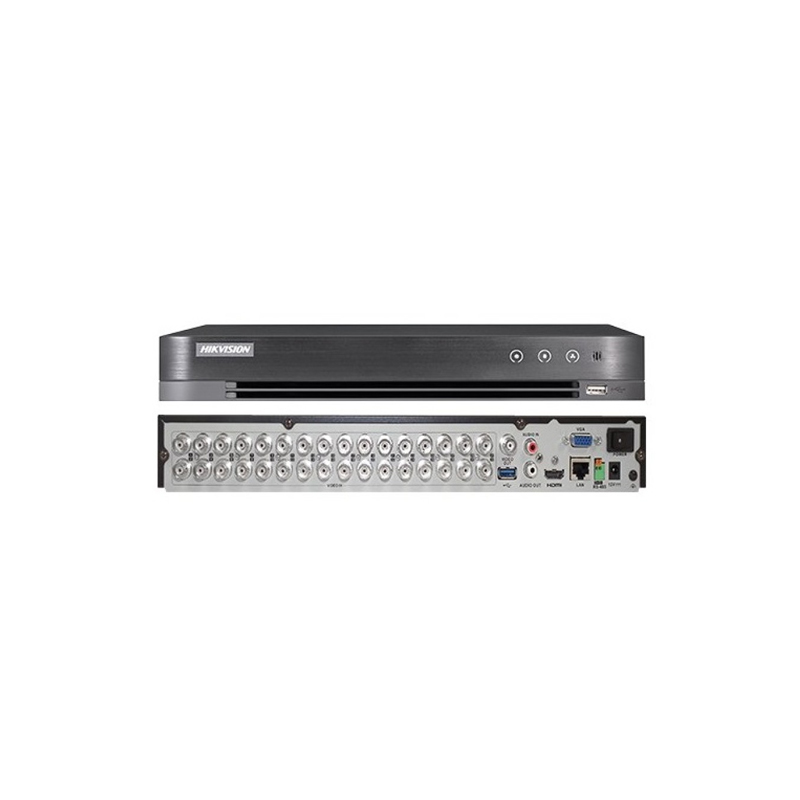

Hikvision 32-ch 720p 1U H.265 DVR DS-7232HGHI-M2
Smart Function
- Deep learning-based motion detection 2.0
Compression and Recording
- H.265 Pro+ video compression improves encoding efficiency, and reduces data storage costs
- Support 1080p Lite of all channels. When 1080p Lite is on, the image effect is similar with 1080p
Storage and Playback
- 2 SATA interfaces (up to 10 TB capacity)
- Smart search for efficient playback
Network & Ethernet Access
- Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
Motion Detection 2.0
Human/Vehicle Analysis
- Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
- Quick search by object or event type is supported;
Recording
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution 1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF
Frame Rate
Main stream:
- For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA@15fps; CIF@25fps
- For 720p stream access: 720p/WD1/4CIF/VGA@15fps; CIF@25fps
- For standard definition stream access: WD1/4CIF/VGA/CIF@25fps
- Sub-stream: CIF/QVGA@15fps
Video Bitrate 32 Kbps to 4 Mbps
Dual-Stream Nonsupport
Stream Type Video, Video & Audio
Audio Compression G.711u
Audio Bitrate 64 Kbps
Video And Audio
IP Video Input
- 2-ch (up to 18-ch)
- Up to 5 MP resolution
- Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
- 32-ch
- BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input 1080p25, 1080p30, 720p25, 720p30
AHD Input 1080p25, 1080p30, 720p25, 720p30
HDCVI Input 1080p25, 1080p30, 720p25, 720p30
CVBS Input PAL/NTSC
HDMI Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω)
Audio Input
- 1-ch, RCA (2.0 Vp-p, 1 KΩ)
- 32-ch via coaxial cable
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous Playback 16-ch
Network
- Remote Connection 128
- Total Bandwidth 128 Mbps
- Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, EHome
- Network Interface 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
- Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary Interface
- Serial Interface RS-485 (half-duplex)
- SATA 2 SATA interface
- Capacity Up to 10 TB capacity for each disk
USB Interface
- Front panel: 1 × USB 2.0
- Rear panel: 1 × USB 3.0
General
- Power Supply 12 VDC, 3.33 A
- Consumption ≤ 18 W (without HDD)
- Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity 10% to 90%
- Dimension (W × D × H) 380 × 320 × 48 mm (10.2 × 8.7 × 1.8 inch)
- Weight ≤ 2.2 kg (without HDD, 4.9 lb.)
