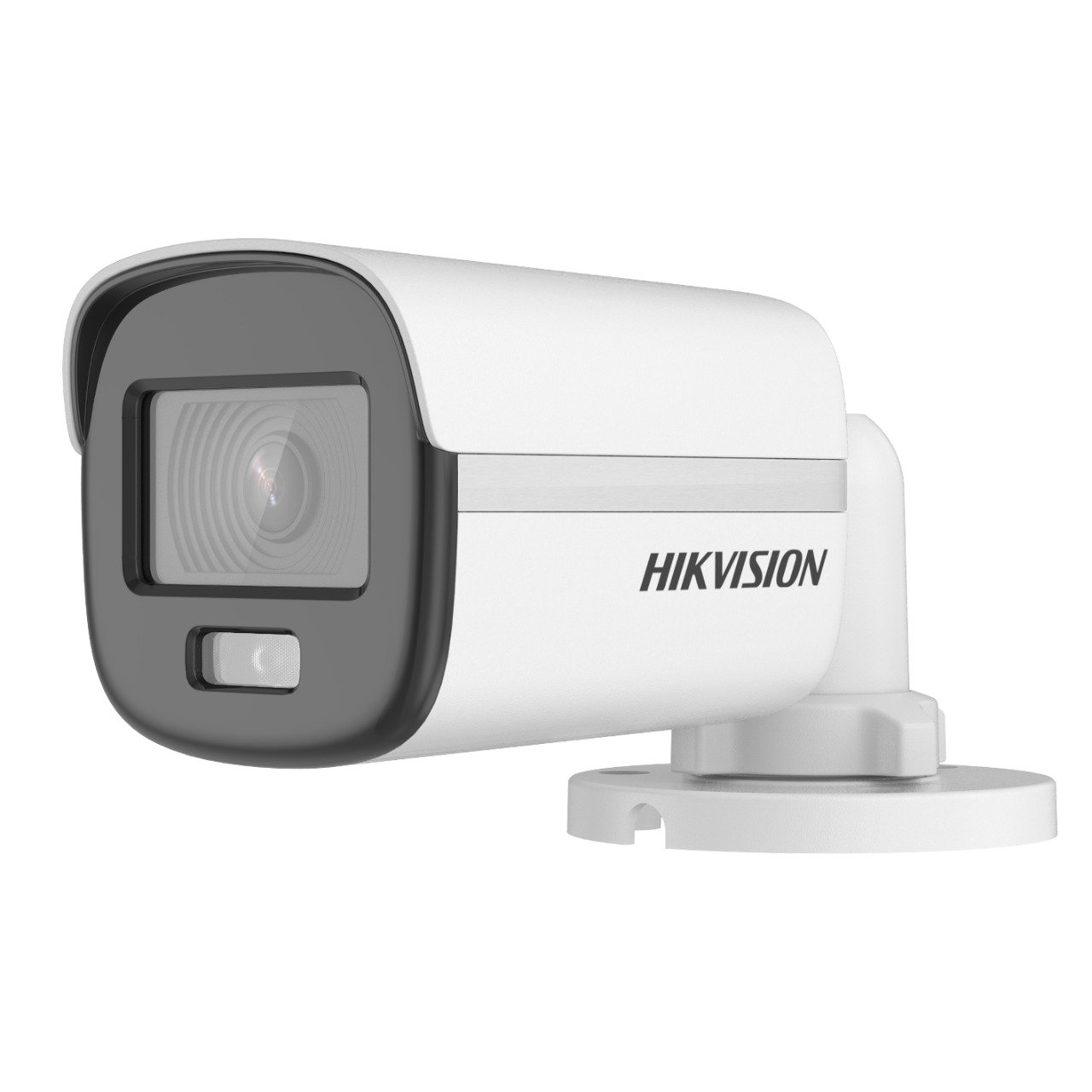

Hikvision 2MP ColorVu Fixed Mini Bullet Camera DS-2CE10DF0T-PF

2M CMOS Sensor, Outdoor Bullet,0.001Lux/F1.0,0 Lux with white Light,20m,3D DNR,12 VDC,OSD Menu(Up the Coax), IP67, 2.8/3.6/6mm Lens,24H Color，Support TVI/AHD/CVI/CVBS video signal output

Features:

High-quality imaging with 2 MP, 1920 × 1080 resolution
24/7 color imaging with F1.0 aperture
3D DNR technology delivers clean and sharp images
2.8 mm, 3.6 mm, 6 mm fixed focal lens
Up to 20 m white light distance for bright night imaging
One port for four switchable signals (TVI/AHD/CVI/CVBS)
Water and dust resistant (IP67)

Camera

Image Sensor 2 MP CMOS
Signal System PAL/NTSC
Resolution 1920 (H) × 1080 (V)
Frame Rate TVI: 1080p@25fps/30fps CVI: 1080p@25fps/30fps AHD: 1080p@25fps/30fps CVBS: PAL/NTSC
Min. Illumination 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Lens 2.8 mm, 3.6 mm, 6 mm Fixed Lens
Field Of View 2.8 mm, horizontal FOV: 98°, vertical FOV: 51°, diagonal FOV: 115° 3.6 mm, horizontal FOV: 76°, vertical FOV: 41°, diagonal FOV: 90° 6 mm, horizontal FOV: 50°, vertical FOV: 27°, diagonal FOV: 58°
Lens Mount M12
Light Alarm Solid Light Alarm (White Light)
WDR (Wide Dynamic Range) Digital WDR
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°


White Light Auto/Off
Image Mode STD/HIGH-SAT/HIGHLIGHT
AGC Yes
Day/Night Mode Color
White Balance Auto/Manual
AE (Auto Exposure) Mode DWDR;BLC;HLC;Global
Noise Reduction 3D DNR/2D DNR
Language English
Function Sharpness;Mirror;Brightness;Smart Light;Anti-Banding

Interface

Video Output Switchable TVI/AHD/CVI/CVBS

General

Operating Conditions -40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
Power Supply 12 VDC ± 25%
Consumption Max. 2.4 W
Protection Level IP67
Material Plastic
White Light Range Up to 20 m
Communication HIKVISION-C
Dimension 161.1 mm × 70 mm × 70 mm (6.34" × 2.76" × 2.76")
Approx. 229 g (0.50 lb)
