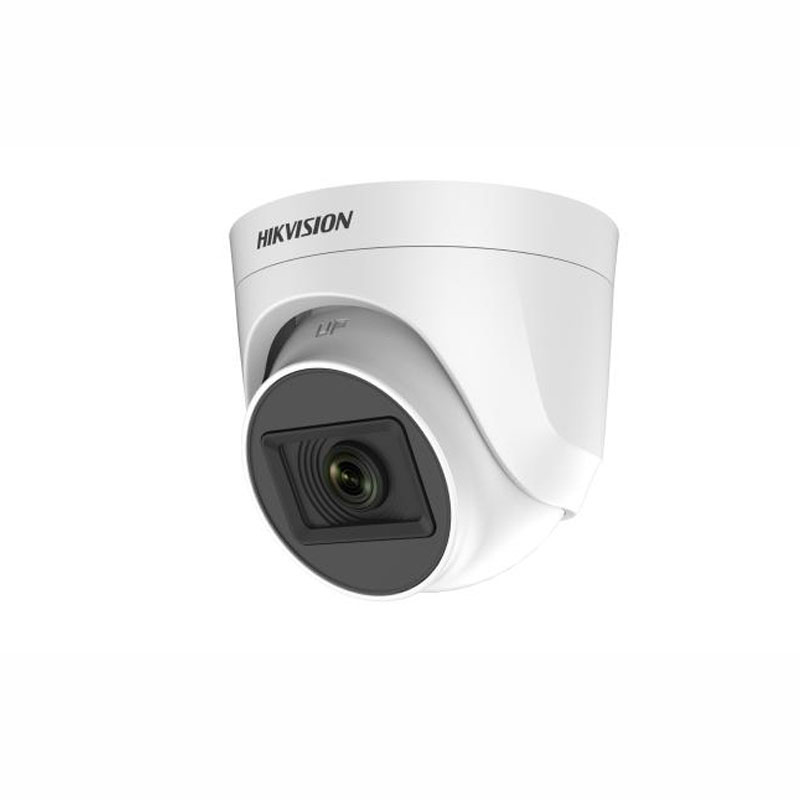

Camera

• Image Sensor2 MP CMOS
  Signal SystemPAL/NTSC
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Day & NightIR Cut Filter
• Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

• Lens
• Lens Type2.8 mm, 3.6 mm Fixed Lens
• Focal Length & FOV

2.8 mm, horizontal FOV: 96.5°, vertical FOV: 48.9°, diagonal FOV: 120.5°

3.6 mm, horizontal FOV: 76.9°, vertical FOV: 40.6°, diagonal FOV: 92.0°

• Lens MountM12

• Illuminator
• Supplement Light RangeUp to 20 m

• Image
• Frame Rate

TVI: 1080p@25fps/30fps

AHD: 1080p@25fps/30fps

CVI: 1080p@25fps/30fps

CVBS: PAL/NTSC

• Wide Dynamic Range (WDR)Digital WDR
• Image Parameters SwitchSTD/HIGH-SAT
• Day/Night ModeAuto/Color/BW (Black and White)
• White BalanceAuto
• Image EnhancementDWDR, BLC, Global
• Noise Reduction2D DNR
• Image SettingsBrightness, Mirror, Smart IR, Sharpness, AGC

• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS

• General
• LanguageEnglish
• Operating Condition-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
• MaterialPlastic
• CommunicationHIKVISION-C
• DimensionΦ 84.6 mm × 78.9 mm (Φ 3.33" × 3.11")
• WeightApprox. 195g (0.43 lb.)
• Power12 VDC ± 25%, Max. 3.3 W
