Shop By Brands, Hikvision

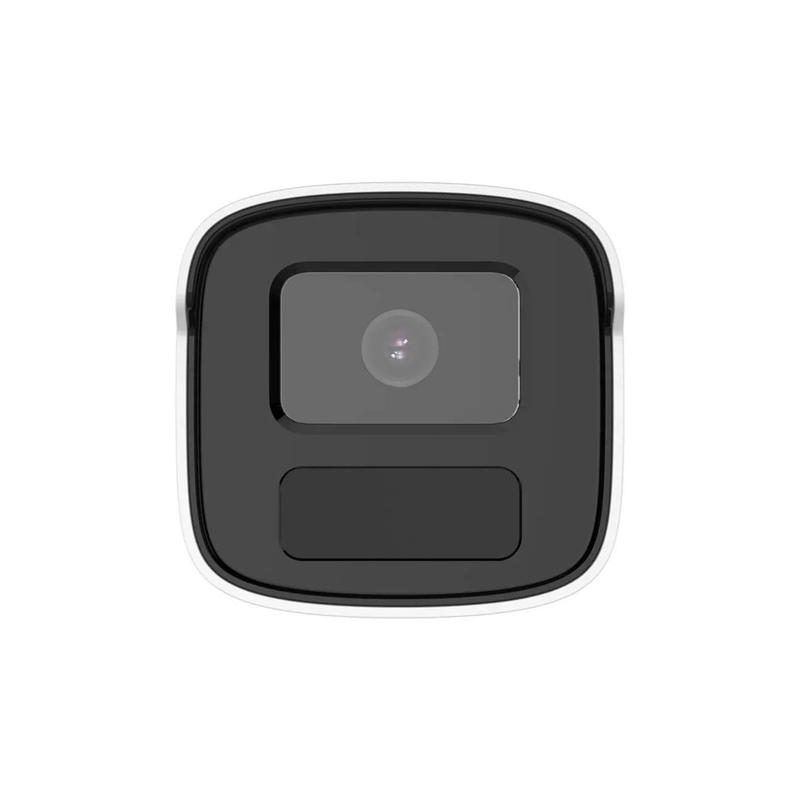

Hikvision 2 MP Fixed Bullet Network Security Camera DS-2CD1T23G2-I

High quality imaging with 2 MP resolution
Support Human and Vehicle Detection
Water and dustresistant (IP67)
Efficient H.265+ compression technology
EXIR 2.0: advanced infrared technology with long IR range
Support on-board storage up to 256GB (SD card slot)(Optional)
Built-in microphone for real-time audio security(Optional)

Rs. 6,374

Hikvision 2 MP Fixed Bullet Network Security Camera DS-2CD1T23G2-I

The Hikvision DS-2CD1T23G2-I is an impressive surveillance camera that offers high-quality imaging with its 2 MP resolution, ensuring clear and detailed footage. With support for human and vehicle detection, this camera provides advanced analytics for improved security and targeted monitoring. Designed to withstand various environmental conditions, it is water and dust resistant with an IP67 rating, ensuring reliable operation even in challenging outdoor settings. The camera incorporates efficient H.265+ compression technology, effectively reducing bandwidth and storage requirements while maintaining excellent image quality. Equipped with EXIR 2.0, an advanced infrared technology, it delivers a long IR range for enhanced night-time surveillance capabilities. Additionally, the camera offers the option of on-board storage of up to 256GB through an SD card slot, allowing for convenient local recording. For added security features, it can be optionally equipped with a built-in microphone, enabling real-time audio monitoring and enhancing overall surveillance capabilities. The Hikvision DS-2CD1T23G2-I is a versatile and reliable camera suitable for a wide range of surveillance applications.

Features

High quality imaging with 2 MP resolution
Support Human and Vehicle Detection
Water and dustresistant (IP67)
Efficient H.265+ compression technology
EXIR 2.0: advanced infrared technology with long IR range
Support on-board storage up to 256GB (SD card slot)(Optional)
Built-in microphone for real-time audio security(Optional)

Camera

Image Sensor 1/2.9" Progressive Scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°

Lens -

Lens Type Fixed focal lens, 4 and 6 mm optional

Focal Length & FOV

4 mm, horizontal FOV 81°, vertical FOV 43°, diagonal FOV 96°
6 mm, horizontal FOV 51°, vertical FOV 27°, diagonal FOV 60°

Lens Mount M12

Iris Type Fixed

Aperture F2.0

DORI

4 mm, D: 57 m, O: 22 m, R: 11 m, I: 5 m
6 mm, D: 91 m, O: 36 m, R: 18 m, I: 9 m

Illuminator

Supplement Light Type IR
Supplement Light Range Up to 50 m
Smart Supplement Light Yes
IR Wavelength 850 nm

Video

Main Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG

Video Bit Rate 32 Kbps to 8 Mbps

H.264 Type Baseline Profile/Main Profile/High Profile
H.265 TypeMain Profile

Bit Rate Control CBR/VBR

Region Of Interest (ROI) 1 fixed region for main stream

Audio

Audio Type-U: Mono sound
Environment Noise Filtering-U: Yes
Audio Sampling Rate-U: 8 kHz/16 kHz
Audio Compression-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate-U: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network

Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)), ISAPI, SDK
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP

User/Host

Up to 32 users

3 user levels: administrator, operator, and user

Client iVMS-4200, Hik-Connect

Web Browser

Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+


Wide Dynamic Range (WDR) Digital WDR
SNR ≥ 52 dB
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Settings : Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Privacy Mask 4 programmable polygon privacy masks

Interface

Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Built-In Microphone -U: Yes
Reset Key -F: Yes

Event

Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Linkage Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture

General

Power

12 VDC ± 25%, 0.45 A, max. 5.5 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

Material Metal & Plastic

Dimension 83.7 mm × 80.7 mm × 205.6 mm (3.3" × 3.2"× 8.1")
Package Dimension 260 mm × 125 mm × 125 mm (10.2" × 4.9" × 4.9")
Weight -I: Approx. 560 g (1.2 lb.); -IUF: Approx. 580g (1.3 lb.)
With Package Weight -I: Approx. 615 g (1.4 lb.); -IUF: Approx. 635 g (1.4 lb.)

Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup And Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language English, Ukrainian

General Function Heartbeat, anti-banding, mirror, password protection, password reset via email
