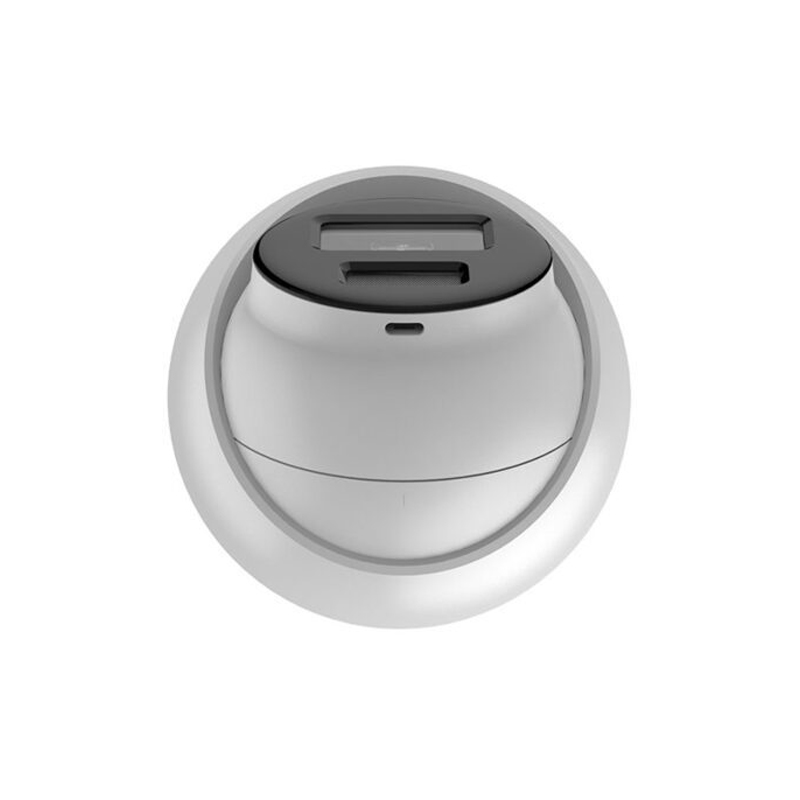

Hikvision 2 MP ColorVu MD 2.0 Fixed Turret Network Camera DS-2CD1327G2-L

Minimum Illumination: 0.0035 Lux @ (ƒ/1.0, AGC On), 0 Lux with Light
Maximum 1920 x 1080 @ 30 fps
2.8 mm Fixed Lens
H.265+, H.264+
24/7 Full Time Color
Up to 98 ft (30 m) IR range
12 VDC and PoE (802.3af, Class 3)

Rs. 8,729

Hikvision 2 MP ColorVu MD 2.0 Fixed Turret Network Camera DS-2CD1327G2-L

Hikvision DS-2CD1327G2-L boasts impressive features, including a minimum illumination of 0.0035 Lux at ƒ/1.0 with AGC on, making it highly capable of capturing clear footage even in low-light conditions. With the ability to reach a maximum resolution of 1920 x 1080 at 30 frames per second, it ensures high-quality video recordings. The 2.8 mm fixed lens offers a wide field of view, allowing for comprehensive coverage. Supporting H.265+ and H.264+ video compression, it efficiently stores and transmits data while maintaining excellent image quality. The camera's 24/7 full-time color function enhances surveillance by providing vivid and accurate color representation. Equipped with infrared (IR) technology, it can illuminate an area up to 98 ft (30 m) in the absence of external light sources. Additionally, the camera can be powered either by 12 VDC or through Power over Ethernet (PoE) using the 802.3af standard, ensuring flexibility in installation options.

Camera

Image Sensor 1/2.8" progressive scan CMOS
Minimum Illumination 0.0035 @ (ƒ/1.0, AGC on), 0 lux with light
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
DNR 3D DNR
Wide Dynamic Range 120 dB
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

Focal Length 2.8 mm or 4 mm
Aperture ƒ/1.0
Focus Fixed
FOV 2.8 mm, horizontal FOV: 112°, vertical FOV: 57°, diagonal FOV: 126°
4 mm, horizontal FOV: 89°, vertical FOV: 46°, diagonal FOV: 106°
Lens Mount M16

Compression Standard

Video Compression

Main stream: H.265+/H.265/H.264+/H.264

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

H.264 Type Main profile/high profile
H.264+ Main stream supports
H.265 Type Main profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 16 Mbps

Smart Features

Behavior Analysis Line crossing detection, intrusion detection, object removal detection, unattended baggage detection
Exception Detection Scene change detection
Face Detection Yes


Maximum Resolution 1920 × 1080
Main Stream 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 x 720)
Sub-Stream 60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
Third Stream 60 Hz: 30 fps (1920 x 1080, 1280 x 720, 640 x 360, 352 x 240)
Image Enhancement BLC/3D DNR/HLC
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or Web browser
Day/Night Switch Day/Night
ROI (Region of Interest) Supports 1 fixed region for main stream and sub-stream separately

Audio (-U)

Environment Noise Filtering Yes
Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32−160 Kbps (MP2L2)

Network

Network Storage Supports microSD/SDHC/SDXC card (128 GB) local storage, NAS (NFS, SMB/CIFS), ANR
Alarm Trigger Motion detection, video tampering detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1x, QoS, IPv6, UDP,Bonjour
General Function One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live Views Up to 6 channels
User/Host Up to 32 users, 3 levels: Administrator, Operator, and User
Client iVMS-4200, Hik-Connect, iVMS-4500
Web Browser Plug-in required live view: IE8+, Chrome 41.0−44, Firefox 30.0−51, Safari 8.0−11
Plug-in free live view: Chrome 45.0+, Firefox 52.0+

Interface

Communication Interface 1 RJ-45 10M/100M self-adaptive Ethernet port
On-Board Storage Built-in microSD/SDHC/SDXC slot, up to 128 GB
Reset Button Yes
Audio (-U) Built-in microphone, mono sound

General

Operating Conditions -22° to +140° F (-30° to +60° C), humidity 95% or less (non-condensing)
Power Supply 12 VDC ±25%, 5.5 mm coaxial power plug
PoE (802.3af, class 3)
Power Consumption 12 VDC, 0.5 A, maximum 6 W
PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, maximum 7.5 W
Visible Light Range Up to 98 ft (30 m)
Protection Level -L model: IP67
-LU model: IP66
Material Camera: metal; trim ring: plastic
Dimensions Camera: Ø5.4" x 4.9" (Ø138.3 mm x 125.2 mm)
With package: 7" x 7" x 5.9" (170 mm x 170 mm x 150 mm)
Weight Camera: 1.3 lb (575 g)
With package: 1.8 lb (833 g
