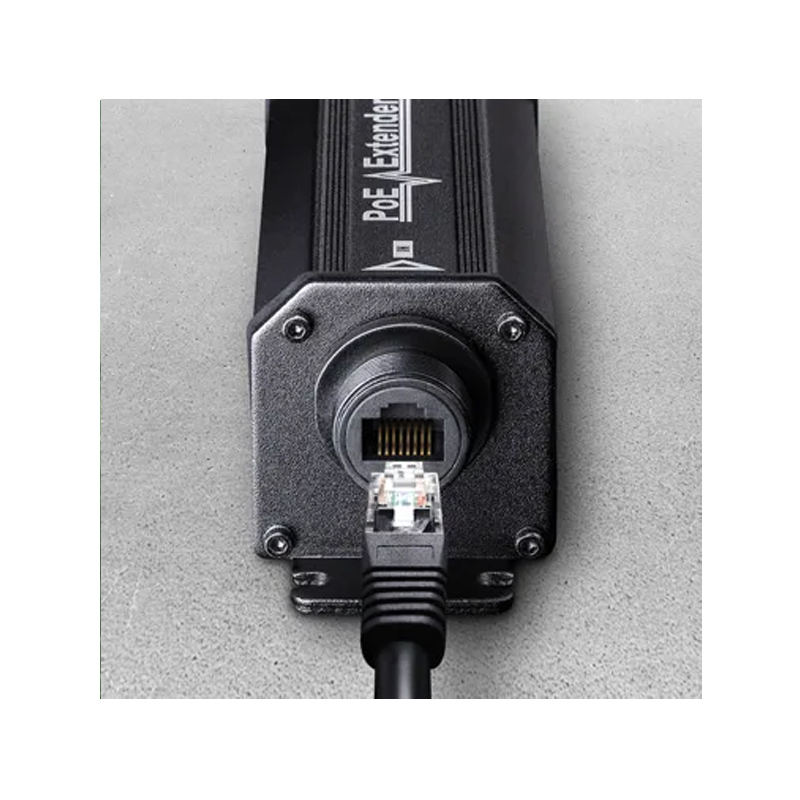

Cudy POE15 Power over Ethernet Extender in Nepal

.
Gigabit Ports

Gigabit Speed. The PoE Extender features one 10/100/1000Mbps PoE+ input port and one 10/100/1000Mbps PoE+ output port.

Wall Mount

The wall-mounted design is convenient for network deployment, allowing the expander to be installed in any position, and ensuring stability and avoiding damage.

Plug and Play

Plug and Play, no other settings are required. No external power is required. Pin Assignment and Polarity Input: 1/2 (-), 3/6 (+), 4/5(+), 7/8(-), Output: 1/2 (+), 3/6 (-).

Product Name	POE15
No. of channels	1(PoE IN) into 1(PoE OUT)
Pass-Through Data Rates	10/100/1000 Mbps half/full duplex
Power over Ethernet input	Pin Assignment and Polarity:Both 1/2 (-), 3/6 (+) and 7/8 (-), 4/5 (+)
Power over Ethernet Output	Pin Assignment and Polarity:1/2 (+), 3/6 (-) Output Power: up to 25W
Indicators	LED indicators are located on the RJ45 connectorPower indicator: PoE enabledNetwork indicator: Link/Act
Connectors	Shielded RJ-45, EIA 568A and 568B
Network cables	Shielded category 5 (or higher)
Dimensions	185mm x 45mm x 45mm
Mounting	Wall of shelf

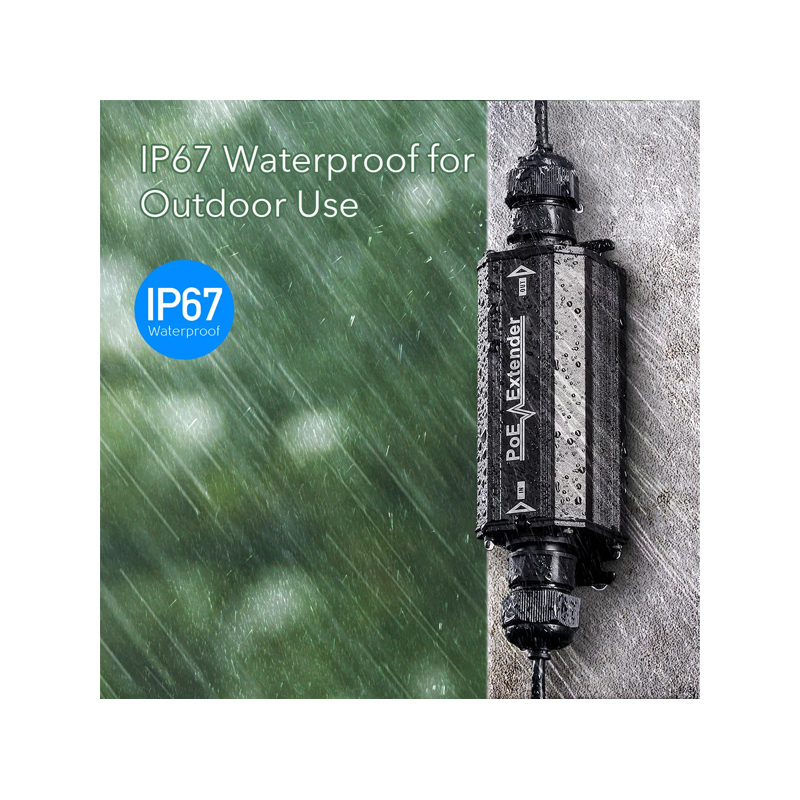

Environment	Indoor or Outdoor
Environmental Conditions	Operating Ambient Temperature: -25 to 55℃ Operating Humidity: Maximum 90%, Non-condensing Storage Temperature: -30 to 70℃ Storage Humidity: Maximum 95%, Non-condensing
Regulatory Compliance	IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
Warranty	2 Years
