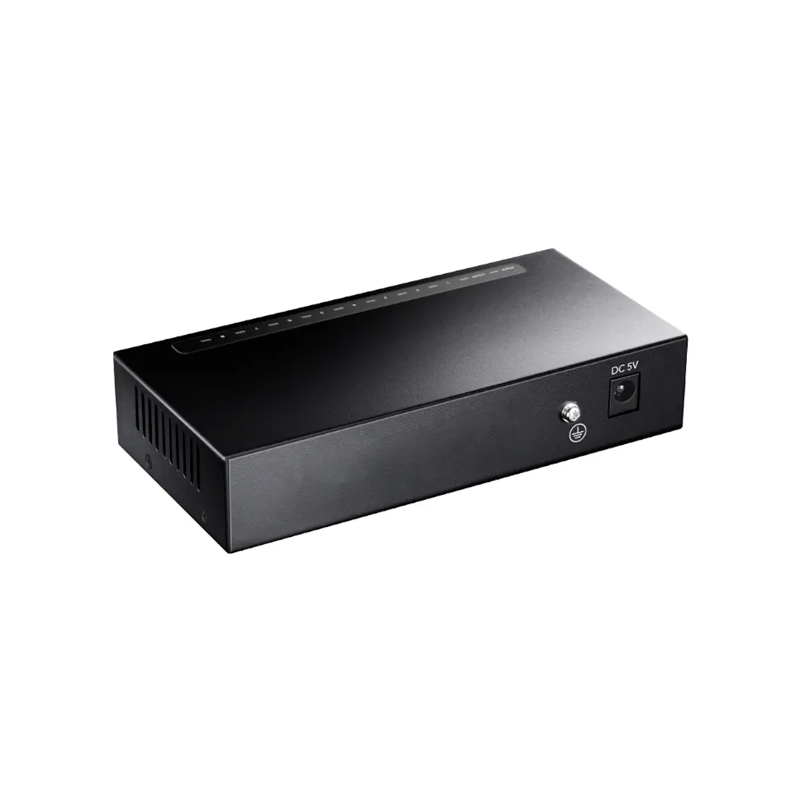

Cudy GS108 8-Port Gigabit Desktop Switch


● Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards
● 8 10/100/1000Mbps Auto-Negotiation, Auto-MDI/MDIX ports provide smart switching between 10Mbps, 100Mbps and 1000Mbps hardware
● Non-blocking switching architecture enables full wire-speed packets forwarding and filtering
● Store-and-Forward switching method
● Supports 16K MAC address auto-learning & auto-aging

Rs.  4,465 Rs.  4,700


Cudy GS108 8-Port Gigabit Desktop Switch

Gigabit Ports for Faster Speed

Increase the speed of your network with the 5-port Gigabit switch. Non-blocking, 5 10/100/1000Mbps ports enables instant transferring of large, bandwidth intensive files without interference.


High Performance

Auto-negotiation RJ-45 ports can provide large file transferring and also be compatible with any 10/100/1000Mbps Ethernet devices.IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode offer increased bandwidth to alleviate network congestion, making the switch work reliably.

Support Loop Alarm

Auto-negotiation RJ-45 ports can provide large file transferring and also be compatible with any 10/100/1000Mbps Ethernet devices.IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode offer increased bandwidth to alleviate network congestion, making the switch work reliably.

Surveillance

Works with IP Cameras for home and office, small business

VoIP Conference Call

Works with VoIP phones for business conference

Wi-Fi Coverage

Works with WiFi APs for office and business

Model GS108
Standard configurati 8 10/100/1000M RJ-45 adaptive ports
Switching Capacity 16Gbps
Throughput 11.9Mpps
Packet Buffer 2.5M
MAC Address 1K
Jumbo Frame 2K
Transfer Mode Store and forward
MTBF 100000 hour
Network protocol

IEEE802.3 (10Base-T)

IEEE802.3u (100Base-TX)

IEEE802.3ab (1000Base-TX)

IEEE802.3x (Flow control)
Industry Standard

EMI: FCC Part 15 CISPR (EN55032) class A

EMS: EN61000-4-2 (ESD)、EN61000-4-4 (EFT)

Shock: IEC 60068-2-27

Free Fall: IEC 60068-2-32

Vibration: IEC 60068-2-6
Network Medium

10Base-T : Cat3,4,5 or above UTP(≤100m)

100Base-TX : Cat5  or above UTP(≤100m)

1000Base-TX : Cat5 or aboveUTP(≤100m)
Working Environment

Working Temperature:-10~50°C

Storage Temperature:-40~70°C

Working Humidity :10%~90%,non-condensing

Storage Temperature:5%~90%,non-condensing

Working Height:Maximum10,000 feet

Storage heigh:Maximum 10,000 feet
LED Indicators PWR(Power indicator)、Link(Network Link)、LOOP(Loop alarm)
DIP Switch

VLAN:Port Isolation, 1-6 ports are isolated each other, all communicate with uplink port 7/8;

Default:Default mode, Support loop alarm;

Extend:Monitor Mode, 1-6 ports support 100M speed reduction negotiation, support 250 meters in 10Mbps/s mode,  port 7 and port 8 as uplink port
Structure Size

Product Size:137*77*25mm

Package Size:175*120*63mm

Product Net-Weight:0.3kg

Product Gross-Weight:0.5kg

Packing Info

MEAS:505*320*400mm

Packing Qty:40 unit

Packing weight:21KG
Power Voltage

Power Input Voltage :AC 100-240 V

Switch Input Voltage::DC 5V
Warranty 2 Years
