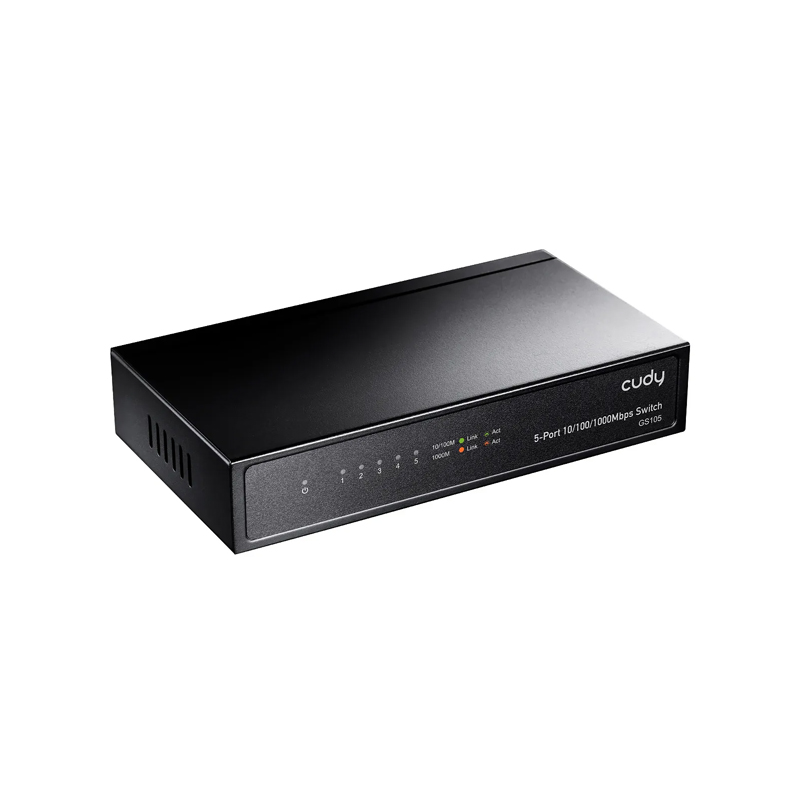

Cudy GS105 5-Port Gigabit Desktop Switch

● Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards
● 5 10/100/1000Mbps Auto-Negotiation, Auto-MDI/MDIX ports provide smart switching between 10Mbps, 100Mbps and 1000Mbps hardware
● Non-blocking switching architecture enables full wire-speed packets forwarding and filtering
● Store-and-Forward switching method
● Supports 16K MAC address auto-learning and auto-agin

Rs. 3,230 ~~Rs. 3,400~~

Cudy GS105 5-Port Gigabit Desktop Switch

Gigabit Ports for Faster Speed

Increase the speed of your network with the 5-port Gigabit switch. Non-blocking, 5 10/100/1000Mbps ports enables instant transferring of large, bandwidth intensive files without interference.

High Performance

Auto-negotiation RJ-45 ports can provide large file transferring and also be compatible with any 10/100/1000Mbps Ethernet devices.IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode offer increased bandwidth to alleviate network congestion, making the switch work reliably.

Support Loop Alarm

Surveillance

Works with IP Cameras for home and office, small business

VoIP Conference Call

Works with VoIP phones for business conference

Wi-Fi Coverage

Works with WiFi APs for office and business

Model	GS105
Standard configurati	5 10/100/1000M RJ-45 adaptive ports
Switching Capacity	10Gbps
Throughput	7.44Mpps
Packet Buffer	1M
MAC Address	1K
Jumbo Frame	2K
Transfer Mode	Store and forward
MTBF	100000 hour
Network protocol	IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control)
Industry Standard	EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD)、EN61000-4-4 (EFT) Shock: IEC 60068-2-27 Free Fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
Network Medium	10Base-T : Cat3,4,5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or aboveUTP(≤100m)
Working Environment	Working Temperature：-10~50°C Storage Temperature：-40~70°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~90%，non-condensing Working Height：Maximum10,000 feet Storage heigh：Maximum 10,000 feet
LED Indicators	PWR（Power indicator）、Link（Network Link）、LOOP（Loop alarm）
DIP Switch	VLAN：Port Isolation, 1-4 ports are isolated each other, all communicate with uplink port 5; Default：Default mode, Support loop alarm; Extend：Monitor Mode, 1-4 ports support 100M speed reduction negotiation, support 250 meters in 10Mbps/s mode, port 7 and port 8 as uplink port
Structure Size	Product Size：1007026mm Package Size：17512063mm Product Net-Weight：0.2kg Product Gross-Weight：0.4kg
Packing Info	MEAS：505320400mm Packing Qty：40 unit Packing weight：17KG
Power Voltage	Power Input Voltage ：AC 100-240 V Switch Input Voltage:：DC 5V
Warranty	2 Years
