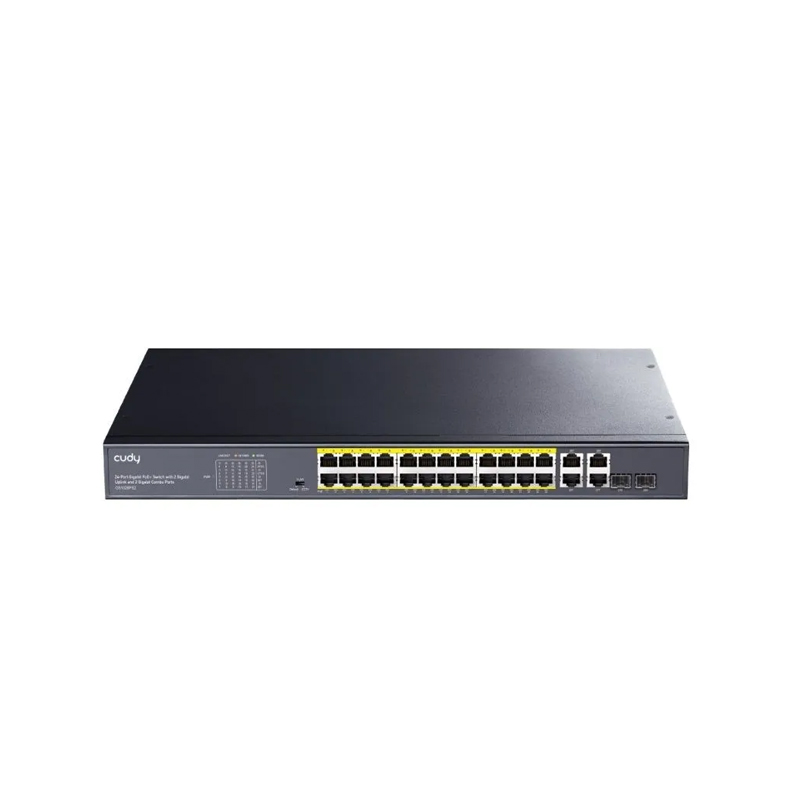

Cudy GS1028PS2 24-Port Gigabit PoE+ Switch with 2 Gigabit SFP Ports

● IEEE 802.3af/802.3at standard compliant
● 300 watts total PoE power budget, up to 30-watt per port
● 24 x GbE PoE+ Port and 2 x SFP Port
● CCTV Mode supports remote power & data feeding up to 250 meters
● VLAN mode supports 24 POE+ ports isolated from each other
● LED indicators for network diagnostics
●19-inch metal case, internal power design

Rs. 37,525 ~~Rs. 39,500~~

Cudy GS1028PS2 24-Port Gigabit PoE+ Switch with 2 Gigabit SFP Ports

24-Port PoE + 2-Port Uplink

● 10/100 / 1000Mbps Ethernet ports
● IEEE 802.3af / 802.3at compliant
● 300W total PoE power supply.
● Ideal for installing 24 PoE devices
● Auto-sensing technology delivers up to 30W of power to an 802.3at PoE + device with backward compatibility for 802.3af PoE (15.4W) devices

Flexibility of Uplink Ports

● 2 x 1.25Gbps SFP ports
● Support for the 19-inch cabinet installation
● Support desktop installation

Heat Dissipation

● Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environments.
● Built-in fan and venting holes help to dissipate heat quickly and ensure stable product operation

Texas Instruments PoE chipset inside

● Texas Instruments TPS POE chipset and Realtek switch chipset ensure High performance and stable operation of the product.

Auto-sensing technology

● The port power prioritization technology ensures the continuous power supply of the key nodes.

Lightning protection

● Electrostatic standard: contact 6KV, air 8KV
● MTBF > 50000 hours

Model	GS1028PS2
PoE standard	IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af, IEEE802.3at
Network Media(Cable)	10 BASE-T: UTP category 3, 4, 5 cable (≤100m) 100 BASE-TX: UTP category 5 cable (≤100m) 1000 BASE-T: UTP category 5e cable (≤100m) 1000 BASE-X: MMF or SMF SFP module
MAC Address Table	8K, Auto-learning, Auto-aging
Transfer mode	Store-and-Forward
Frame Forward Rate	10 Base-T: 14881pps/Port 100 Base-TX: 148810pps/Port 1000 Base-T/X: 1488095pps/Port
Switching Capacity	56Gbps
Dimensions (LWH)	440 * 207 * 44 mm
Fan	2/Fanless
Power Input	AC: 100~240V, 50/60Hz
PoE Port	Port1~24
PoE Power on RJ45	Mode A 1/2(-), 3/6(+)
PoE Power Output	30W (Max)
PoE Power budget	300Watts
Temperature	Operating Temperature: 0°C ~ 40 °C (32 °F ~104°F ) Storage Temperature: -40 °C ~ 70 °C (-40 °F ~158°F )
Humidity	Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing
Warranty	2 Years
