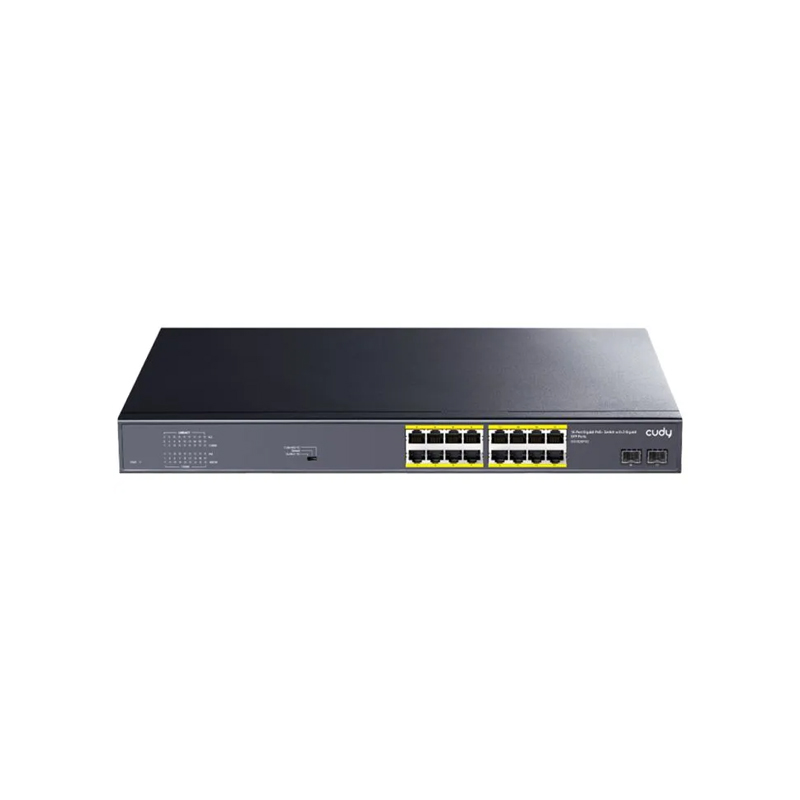

Cudy GS1020PS2 16-Port Gigabit PoE+ Switch with 2 Gigabit SFP Ports


●IEEE 802.3af / 802.3at standard compliant
●200-watt total PoE power budget, up to 30-watt per port
●16xGbE PoE+Port+2 x SFP Port
●CCTV Mode supports remote power&data feeding up to 250M
●VLAN mode supports 16 POE+ ports isolated from each other
●LED indicators for network diagnostics
●19-inch metal case, internal power design

Rs.  33,725 Rs.  35,500


Cudy GS1020PS2 16-Port Gigabit PoE+ Switch with 2 Gigabit SFP Ports



16-Port PoE + 2-Port Fiber

● 10/100 / 1000Mbps Ethernet ports
● IEEE 802.3af / 802.3at compliant
● 200W total PoE power supply.
● Ideal for installing 16 PoE devices
● Auto-sensing technology delivers up to 30W of power to an 802.3at PoE + device with backwards compatibility for 802.3af PoE (15.4W) devices

200W Power budget & 30W Maximum One Port

Supports 200W total PoE+ power and up to 30W for one PoE port. Auto detect power device, will not burned non-standard PoE device or normal PoE switch. Complies with IEEE802.3af/at Standard.

Heat Dissipation

● Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment.

High Quality TPS PoE chipset inside

● High Quality TPS PoE chipset inside ensure High performance and stable operation of the product.

Auto-sensing technology

● The port power prioritization technology ensures the continuous power supply of the key nodes.

Lightning protection

● Electrostatic standard: contact 6KV, air 8KV
● MTBF > 50000 hour

Model   GS1020PS2
Connector Type 16*10/100/1000M PoE Ports + 2*Gigabit SFP Uplink Ports
Network Media (Cable)

IEEE802.3
IEEE802.3u
IEEE802.3x
IEEE802.3ab
IEEE802.3z

PoE Parameters

PoE Standard: IEEE802.3af /IEEE802.3at

Max each port: 15.4W ( IEEE 802.3af )

Max each port:30W ( IEEE 802.3at )
PoE compatibility: IEEE 802.3af/at adaptive
PoE port output: DC48-55V
Power Pin : Power over spare pairs 1/2(+) , 3/6 (-)
Network Media

10BASE-T: Cat 5E UTP(≤250 meter)
100BASE-TX: Cat5 or more UTP (≤100 meter)
1000BASE-TX: Cat5 or more UTP (≤100 meter)

Optical

MultiMode Fiber: 850nm, 1310nm,  Transmission Distance: 550m/2Km
Single-Mode Fiber: 1310nm, 1550nm,  Transmission Distance: 20/40/60/80/100/120km

Performance Specification Bandwidth: 52Gbps
MAC: 8K
Packet Buffer Memory: 4M
Packet Forwarding Rate: 38.7Mpps
Power Supply Power input: AC100-240V 50/60Hz,  Power Budget: 200W
LED Indicator PWR

Power supply indicator (Red)

Lighting:Powered
Un-Light:No Power

1-26

RJ-45 LINK indicator (Green)

Lighting:1000M Connect
Un-Light:100M or Disconnect

1-26

RJ-45 ACT indicator (Green)

Lighting:Connecting
Flashing:Data Transmit
Un-Light:Disconnect

Working Environment

Operating Temperature: -20℃ ~ 50℃;
Storage Temperature: -40℃ ~ 80℃;
Operating Humidity: Max 90%, non-condensing
Storage Humidity: Max 95%, non-condensing
Working Height: Max to 10,000 feet (3,000 meters)
Storage Height: Max to 10,000 feet (3,000 meters)
