Cudy GS1016 16-Port Gigabit Switch

● Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards
● 16 10/100/1000Mbps Auto Negotiation, Auto MDI/MDIX ports provide smart switching abilities
● Non-blocking switching architecture enables full wire-speed packets forwarding and filtering
● Store-and-Forward switching method
● Supports 8K MAC address auto-learning and auto-aging

Rs. 13,110 ~~Rs. 13,800~~

Cudy GS1016 16-Port Gigabit Switch

Provide a variety of installation methods for easy deployment in any environment

● Support 19-inch Rack-mount Steel Case
● Support Desktop installation

High Performance

Auto-negotiation RJ-45 ports can provide large file transferring and also be compatible with any 10/100/1000Mbps Ethernet devices.IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode offer increased bandwidth to alleviate network congestion, making the switch work reliably.

Power Saving

Save power up to 40% - The GS1016 uses green Ethernet technology to make your network compatible without compromising performance. The switch automatically powers down the ports that are idle and budgets power output for different Ethernet cable lengths. It helps you save power up to 40%.

Product Name	16-Port Gigabit Ethernet Switch
Product Model	GS1016
Chipset	RTL8382L+RTL8218B-VC-CG+RTL8231
Standards	IEEE 802.3i、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x、IEEE 802.3az
Number of Ports	16 x 10/100/1000Mbps Auto-Negotiation ports
Network Media (Cable)	10Base-T: UTP category 3,4,5 cable (maximum 100m)
	100Base-Tx: UTP category 5,5e cable (maximum 100m)
	1000Base-T:UTP category 5e,6 cable (maximum 100m)
Transfer Method	Store-and-Forward
MAC Address Table	8K
Switching Capacity	32Gbps
Packet Forwarding Rate	23.81Mbps
Packet Buffer	4.1 Mbit
Jumbo Frame	9216 bytes
LED indicators	Per-Port	10M/100M Link/ACT：Orange
		1000M Link/ACT：Green
	Per Device	Power ：Green

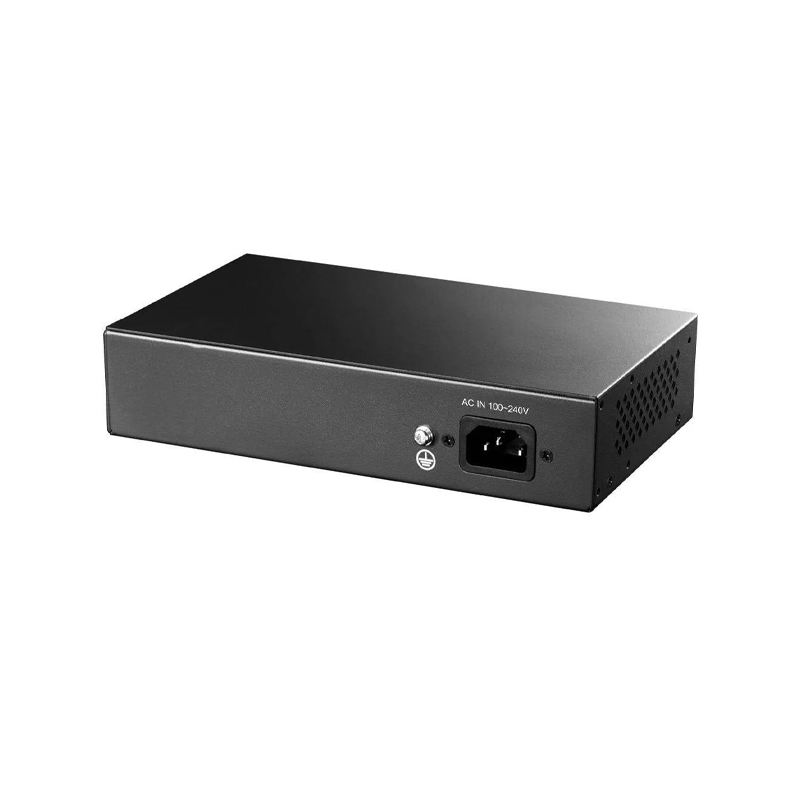

Power Supply	100-240VAC 50/60Hz
Power Consumption	Maximum: 10.1W(220V/50Hz)
Dimensions ( W x D x H )	44014044mm
Environment	Operating Temperature: 0℃ ~ 40℃
	Storage Temperature: -40℃ ~70℃
	Operating Humidity: 10%~90% non-condensing
	Storage humidity: 5%~90% non-condensing
Warranty	2 Years
