Cudy GS1008PT 8-Port Gigabit PoE+ Switch In Nepal!
120 W Power budget & 60 W Maximum One Port
The total PoE power supported by the PoE port is 120 W, and the maximum for port #1~#2 is 60 W. Non-standard PoE devices or normal PoE switches are not burned. Meets IEEE802.3af / at standard.
Rack Mount & Wall Mount & Desktop
● Provide a variety of installation methods for easy deployment in any environment
● Support Wall mount installation
● Support Desktop installation
Plug&Play, Fanless design
Plug and Play, Easy of use.Fanless design for silent operation.Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment. Pin assignment, Mode A: 1/2(+),3/6(-)

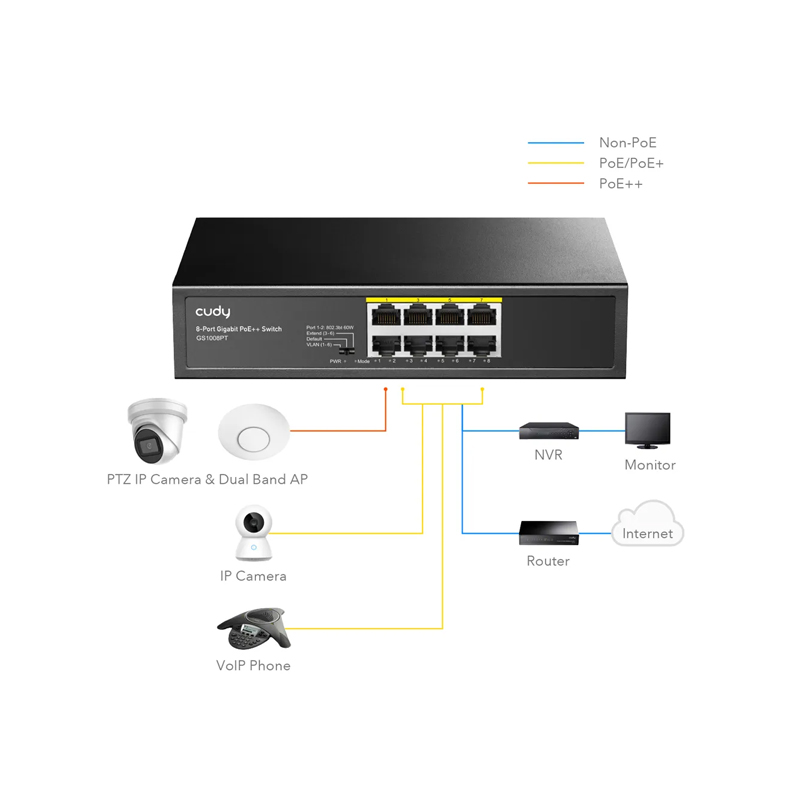

Surveillance
Works with IP Cameras for home and office, small business
VoIP Conference Call
Works with VoIP phones for business conference
Wi-Fi Coverage
Works with WiFi APs for office and business
| Model | GS1008PT |
| Power | Input: AC 100-240V, 50/60Hz |
| Ethernet | 8 *10/100/1000M PoE Port |
| Switching Capacity | 16Gbps |
| Throughput | 11.9Mpps |
| Packet Buffer | 1.5Mb |
| MAC Address | 2K |
| Jumbo Frame | 9216bytes |
| Transfer Mode | Store and forward |
| MTBF |
100000 hour |
| Network protocol |
IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control) |
| PoE Protocol |
IEEE802.3af （15.4W） IEEE802.3at （30W） IEEE802.3at （4 Pair 60W） |
| Industry Standard |
EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD)、EN61000-4-4 (EFT)、EN61000-4-5 (Surge) Shock: IEC 60068-2-27 Free Fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
| Network Medium |
10Base-T : Cat3、4、5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or aboveUTP(≤100m) |
| Working Environment |
Working Temperature：-20~50°C Storage Temperature：-40~85°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~90%，non-condensing Working Height：Maximum10,000 feet Storage heigh：Maximum 10,000 feet |
| LED Indicators | PWR（power supply），Mode（DIP），1-8 Green（Link&Data） |
| PWR |
Lighting：Powered Un-Light：No Power |
| Mode |
Lighting：VLAN Un-Light：Default Flashing：Extend |
| 1-8 Green |
Lighting：Connecting Flashing：Data Transmit Un-Light：Disconnect |
| DIP Switch |
VLAN：Port Isolation, 1-6 port is isolated each other, but all can communicate with uplink port 7/8, AI enable Default: Normal mode, all port can communicate with each other, The port AI mode is closed. Extend：Extend Mode, 3-6 port support 250 meters transmission on 10Mbps/s ,AI enable |
| Product Dimension | 200mm*118mm*44mm |
| Package Dimension | 245mm*190mm*60mm |
| N.W | 0.6kg |
| G.W | 0.9kg |
| Packing Info |
Carton MEAS：505*320*402mm Packing Qty：20 units Packing Weight：19KG |
| Package List |
Input Voltage ：AC 100-240 V
|
| Package List | Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc, |
| Warranty | 2 Years |
