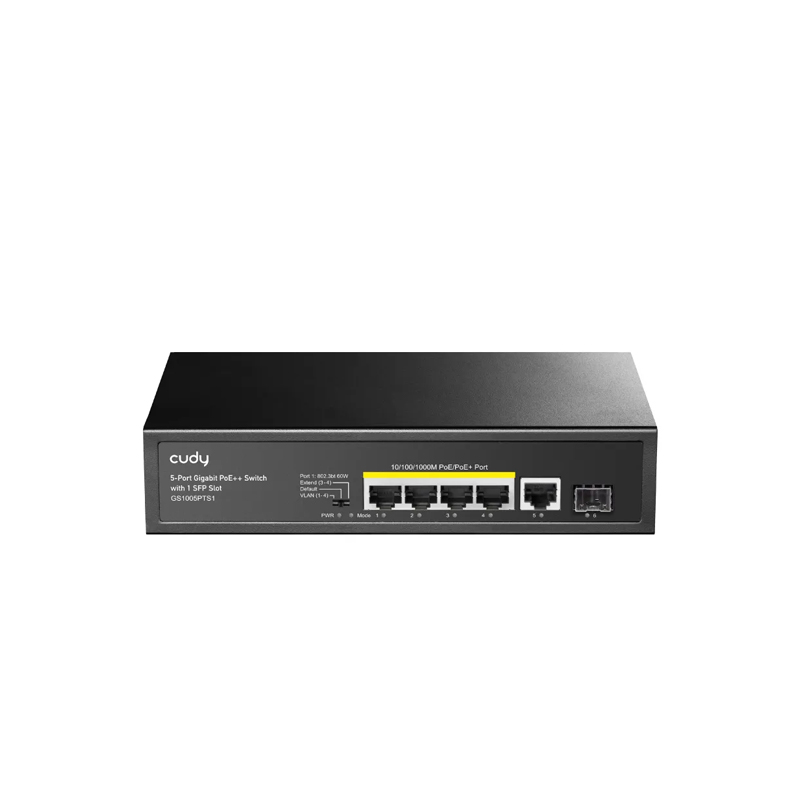

Cudy GS1005PTS1 5-Port Gigabit PoE+ Switch with 1 SFP Slot

● 120 watts PoE power supply
● 4 Gigabit PoE+ ports and 1 Gigabit Ethernet ports+1Gigabit SFP
● Extend mode support remote PoE feeding up to 250m
● VLAN mode isolate each PoE Ports for security
● Watchdog reactivates the abnormalPD by resuming POE power
● IEEE 802.3at / IEEE 802.3af standard compliant
● Plug&play, simple setup with no configuration needed

Rs.  8,455 Rs.  8,900


Cudy GS1005PTS1 5-Port Gigabit PoE+ Switch with 1 SFP Slot Is Now In Nepal!

120 W Power budget & 60 W Maximum One Port

The total PoE power supported by the PoE port is 120 W, and the maximum for port #1 is 60 W. Non-standard PoE devices or normal PoE switches are not burned. Meets IEEE802.3af / at standard.




Rack Mount & Wall Mount & Desktop

● Provide a variety of installation methods for easy deployment in any environment
● Support Wall mount installation
● Support Desktop installation

Plug&Play, Fanless design

Plug and Play, Easy of use.Fanless design for silent operation.Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment. Pin assignment, Mode A: 1/2(+),3/6(-)

Surveillance

Works with IP Cameras for home and office, small business

VoIP Conference Call

Works with VoIP phones for business conference

Wi-Fi Coverage

Works with WiFi APs for office and business

Model GS1005PTS1
Ethernet

4*10/100/1000M PoE Port
1*1000M RJ45 Port
1* Gigabit SFP Uplink Port
Switching Capacity 12Gbps
Throughput 8.928Mpps
Packet Buffer 1Mb
MAC Address 2K
Jumbo Frame 9216bytes
Transfer Mode Store and forward
MTBF 100000 hour
Network protocol

IEEE802.3 (10Base-T)
IEEE802.3u (100Base-TX)
IEEE802.3ab(1000Base-TX)
IEEE802.3z(1000Base-FX)
IEEE802.3x (Flow control)

PoE Protocol

IEEE802.3af （15.4W）
IEEE802.3at （30W）
IEEE802.3at （4 Pair 60W）
Industry Standard

EMI: FCC Part 15 CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD),EN61000-4-4 (EFT),EN61000-4-5 (Surge)
Shock: IEC 60068-2-27
Free Fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Network Medium

10Base-T : Cat3、4、5 or above UTP(≤100m)
100Base-TX : Cat5 or above UTP(≤100m)
1000Base-TX : Cat5 or above UTP(≤100m)
Optical Media

Multimode fiber : 50/125, 62.5/125, 100/140μm
Single mode fiber: 8/125, 8.7/125, 9/125, 10/125μm
Working Environment

Working Temperature：-20~50°C
Storage Temperature：-40~85°C
Working Humidity ：10%~90%，non-condensing
Storage Temperature：5%~90%，non-condensing
Working Height：Maximum10,000 feet
Storage heigh：Maximum 10,000 feet
PWR（power supply）

Lighting：Powered
Un-Light：No Power
Mode（DIP）

Lighting：VLAN
Un-Light：Default
Flashing：Extend
1-6 Gree（Link&Data）

Lighting：Connecting
Flashing：Data Transmit
Un-Light：Disconnect
DIP Switch

VLAN：Port isolation mode. In this mode, the PoE ports (1-4) of the switch cannot communicate with each other, and can only communicate with the UP-link port.
Default: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters
Extend：Link extension mode, 3-4 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M
Product Dimension 200*118*44mm
Package Dimension 245*190*60mm
N.W 0.6kg
G.W 0.9kg
Packing Info

Carton MEAS：505*320*402mm
Packing Qty：20units
Packing Weight：19KG
Package List

Input Voltage ：AC 100-240 V
Package List Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc,
