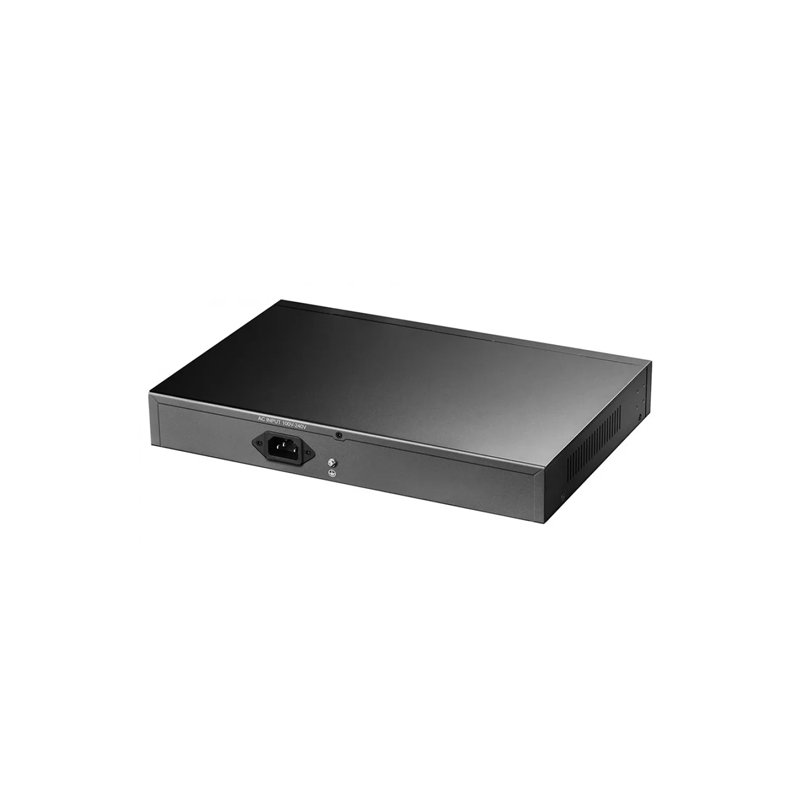

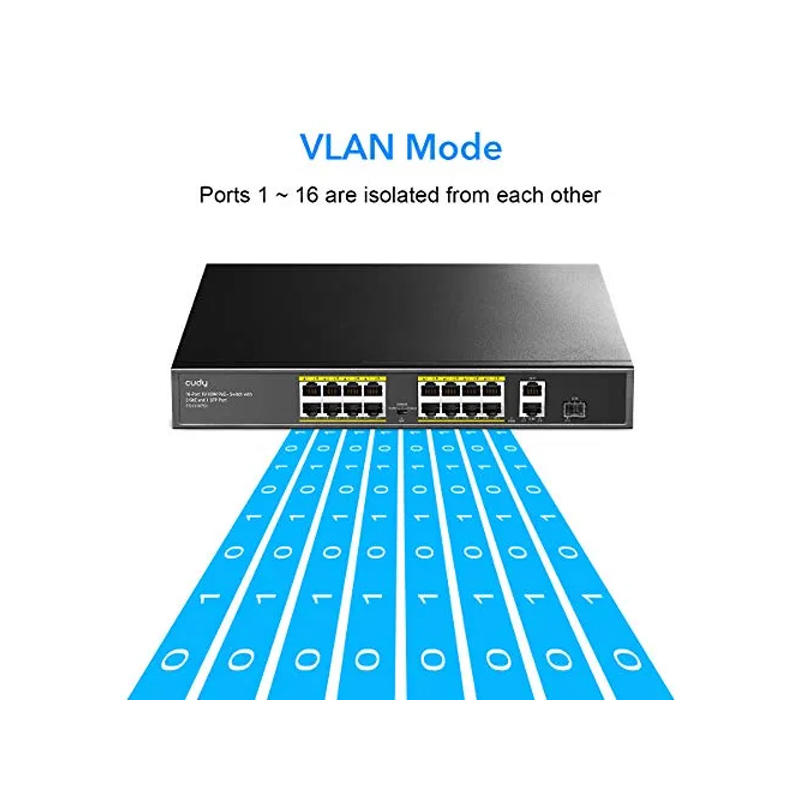

Cudy FS1018PS1 16-Port 10/100M PoE+ Switch with 2GbE and 1 SFP Port Now In Nepal!
200 W Power budget & 30 W Maximum One Port
Supports a total PoE power of 200 W and up to 30 W for one PoE port. Non-standard PoE devices or normal PoE switches are not burned. Meets IEEE802.3af / at standard.
Watchdog guarantees uninterrupted operation of the PoE devices
The PoE watchdog continuously monitors the connection status of remote hosts. If an error is detected on the remote PoE device, the PoE switch immediately restarts the device to bring it back to normal operation.
Plug&Play, Fanless design
Plug and Play, Easy of use.Fanless design for silent operation.Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment. Pin assignment, Mode A: 1/2(+),3/6(-)
Surveillance
Works with IP Cameras for home and office, small business
VoIP Conference Call
Works with VoIP phones for business conference
Wi-Fi Coverage
Works with WiFi APs for office and business
| Mode | FS1018PS1 | |||||||||||||
| Power | Power Supply | Built-in power supply | ||||||||||||
| Voltage Range | AC100~240V | |||||||||||||
| Consumption | 190W for 16 PoE | |||||||||||||
| Ethernet | Speed | 1~16 Port: 10/100/Mbps | ||||||||||||
| G17~G18 Port:10/100/1000Mbps | ||||||||||||||
| G19 Port: SFP 1.25bps | ||||||||||||||
| Transmission Distance | 100Meter(328ft)for RJ-45 | |||||||||||||
| The distance is determined by the optical module | ||||||||||||||
| The optical module is optional | ||||||||||||||
| Network Switch |
Ethenet Standard | IEEE 802.3 802.3u 802.3ab 802.3af/at | ||||||||||||
| Switching Capacity | 7.2G | |||||||||||||
| Transfer Rate | 14880 pps for 10Mbps | |||||||||||||
| 148800 pps for 100Mbps | ||||||||||||||
| 1488000 pps for 1000Mbps | ||||||||||||||
| MAC Adsress | 4K MAC sddress table | |||||||||||||
| Link/ACT | On(Green) | The port is connecting | ||||||||||||
| Blinks | The port is receiving or transmitting data. | |||||||||||||
| Off | The port is notl inked successfully with the device | |||||||||||||
| POE | On(Oranfe) | PD is connected | ||||||||||||
| Off | No PD is connected or power forwarding fails | |||||||||||||
| PoE Pin Assignmnet | V+(RJ45 Pin 1, 2) - (RJ45 Pin 3,6) | |||||||||||||
| Environment | Working Temperature | 0~40°C | ||||||||||||
| Storage Temperature | -40~70°C | |||||||||||||
| Humidity Non Condesing | 0~85% | |||||||||||||
| Mechanical | Dimension L*W*H | 280*180*44mm | ||||||||||||
| Color | Gray | |||||||||||||
| Warranty | 2 Years | |||||||||||||
