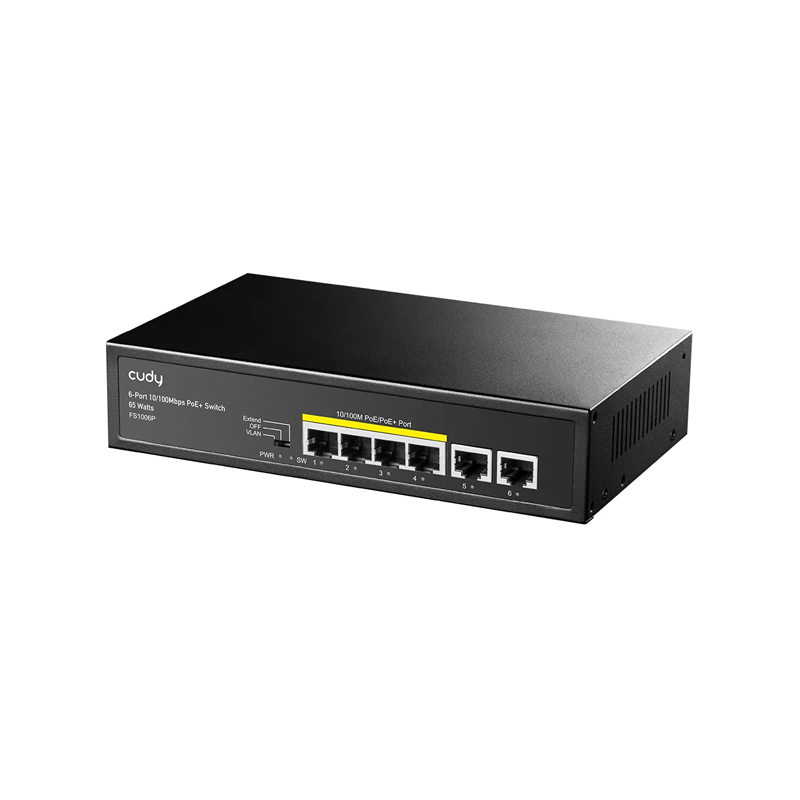

Cudy FS1006P 6-Port 10/100M PoE+ Switch


● Complies with IEEE802.3af/at Standard
● Supports PoE power up to 32W for each PoE port
● Auto detect non PoE device and PoE device
● Power prioritization guarantee power supply of key nodes
● CCTV/VLAN mode switch, remote power and data up to 250m
● Supports IEEE802.3 x full duplex / half duplex flow control
● Supports storage and forward for Data exchange

Rs.  5,035 Rs.  5,300


Cudy FS1006P 6-Port 10/100M PoE+ Switch

4-Port PoE + 2-Port Uplink

● 10/100 Mbps Ethernet Ports
● IEEE 802.3af/802.3at compliant
● 60W total PoE Power supply.
● Ideal for installations of 4 PoE/PoE+ devices
● Pin assignment: alternative 1/2 (+), 3/6 (-).

Rack Mount & Wall Mount & Desktop

● Provide a variety of installation methods for easy deployment in any environment
● Support Wall mount installation
● Support Desktop installation

Heat Dissipation

● Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment.
● Venting holes help to dissipate heat quickly and ensure stable product operation

Texas Instruments PoE chipset inside

● Texas Instruments TPS POE chipset and Realtek switch chipset ensure High performance and stable operation of the product.

Auto-sensing

● Port-Power-Prioritization technology ensure continuous power supply of key nodes.
● Auto-sensing technology delivers up to 32W to an 802.3at PoE+ device with backwards compatibility for 802.3af PoE (15.4W) devices

Lightning protection

● Electrostatic standard: contact 6KV, air 8KV
● MTBF > 50000 hour

Model   FS1006P
PoE standard IEEE802.3af/at
Interface 6*10/100Mbps RJ45 port
key function CCTV
PoE port 1-4
PoE Total 60W
Power supply 65W
RJ45 PoE power supply  Mode A Anode1/2 Cathode3/6
PoE output-port Max 32W
Indicator PWR, LNK/ACT, PoE
Network media 10BASE-T: UTP category 3, 4, 5 cable(≤100m);100BASE-TX: UTP category 5, 5e cable(≤100m)
MAC Address Table 2K, Automatic study, automatic updates
jumbo frame 1528K Bytes
Packet buffer 768K bit
Transfer Mode Store-and-forward
Packet forwarding rate 0.89Mpps
Bandwidth 1.2Gbps
Fan Fanless
Device Dimension 168*93*32mm
Machine weight <1kg
Input Voltage AC 100-240V 50/60Hz
Output Voltage DC:55V/1.5A
Operating Temperature 0°C ~ 40 °C
Storage Temperature  -40 °C ~ 70 °C
Operating Humidity 10% ~ 90% non-condensing
Storage Humidity 5% ~ 90% non-condensing
Surge Protection ±4KV
Certification CE, FCC Class A
MTBF >50000 hour
Electrostatic standard Contact 4KV, air 6KV
